HorologixBulle & Eureka Parts & Restorations

Restoration

Bulle Nº 67438

Photos by kind permission of the owner.

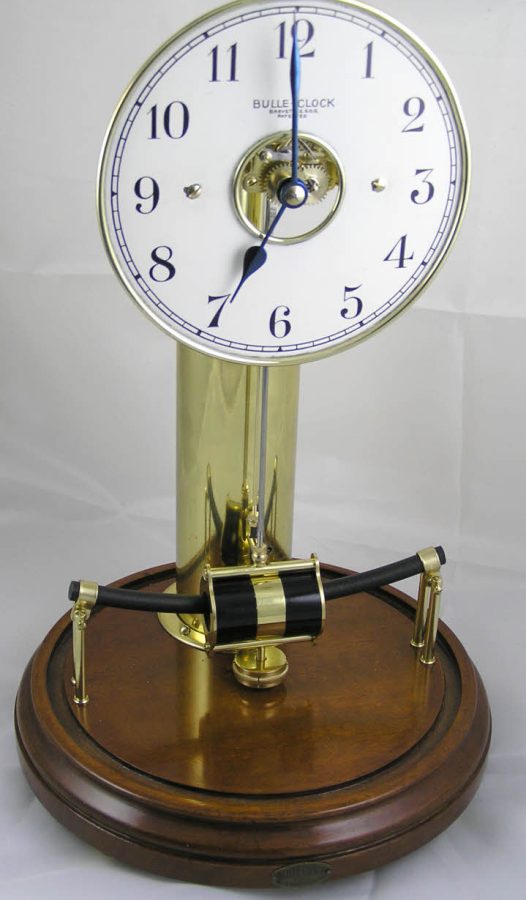

Bulle clock Nº 67438

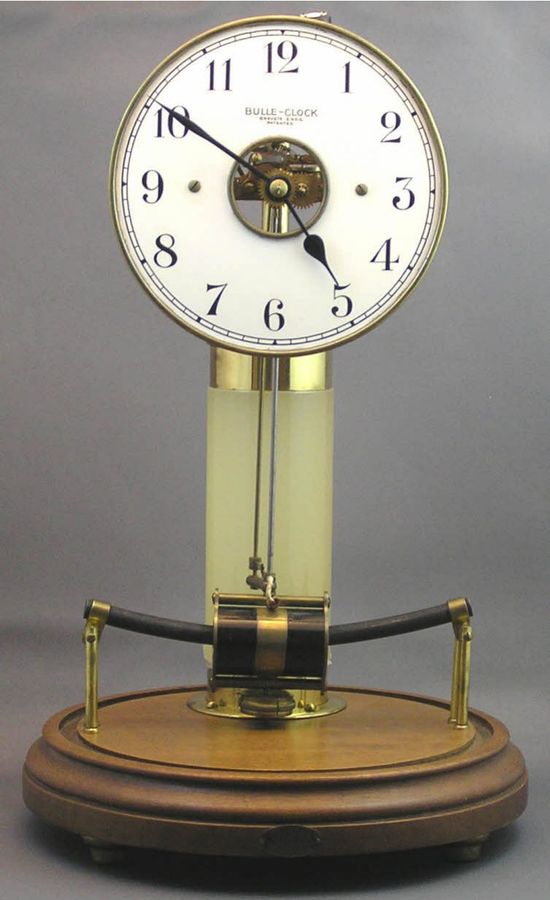

This clock is of the tall two plate, “A” type and dates from around 1926. The first thing to note is that the column looks a little strange!! The top and bottom of the column are all that's left of the original with a solid plastic type material inserted between. We can only assume that the dreaded battery acid has done its work and eaten enough of the original tube for it to be quite rotten and need replacing. The original tube was 55mm diameter and 0.5mm thick, so it is difficult to obtain. From the number that I have restored I believe them to be fabricated from plate rather than extruded. Anyway, we’ll see more when we disassemble the clock. Other than that, the clock looks to be in reasonable order.

Make
Bulle
Serial number
67438
Case
Under dome, tall
Movement
Two plate
Notes
Restoration notes, 2008
Full notes
PDF · 2.5 MB
Read the full restoration notes · PDF 2.5 MB

The complete write-up, with all the photographs, is in the PDF. It can be read on screen, saved or printed.

From the restoration

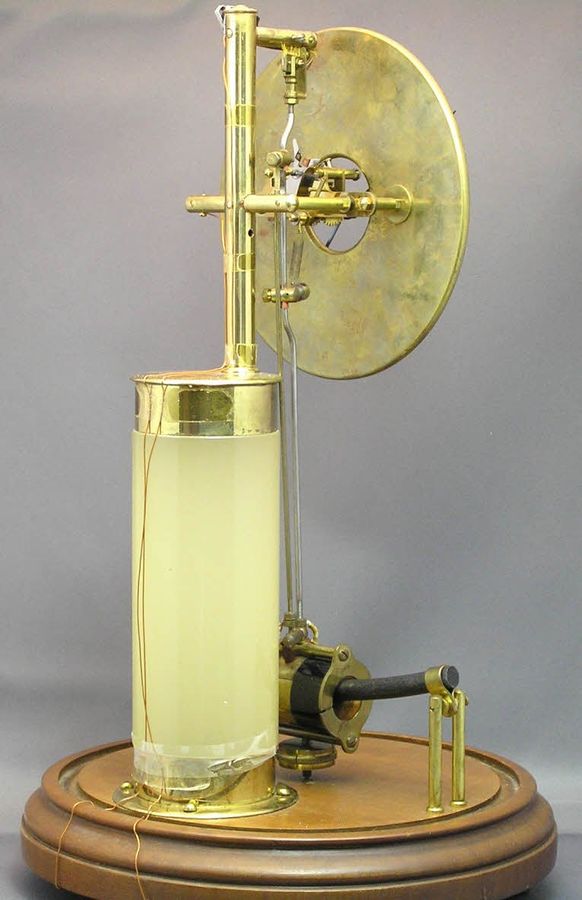

Bulle Nº 67438: photo from page 3 of the restoration notes
From page 3 of the notes

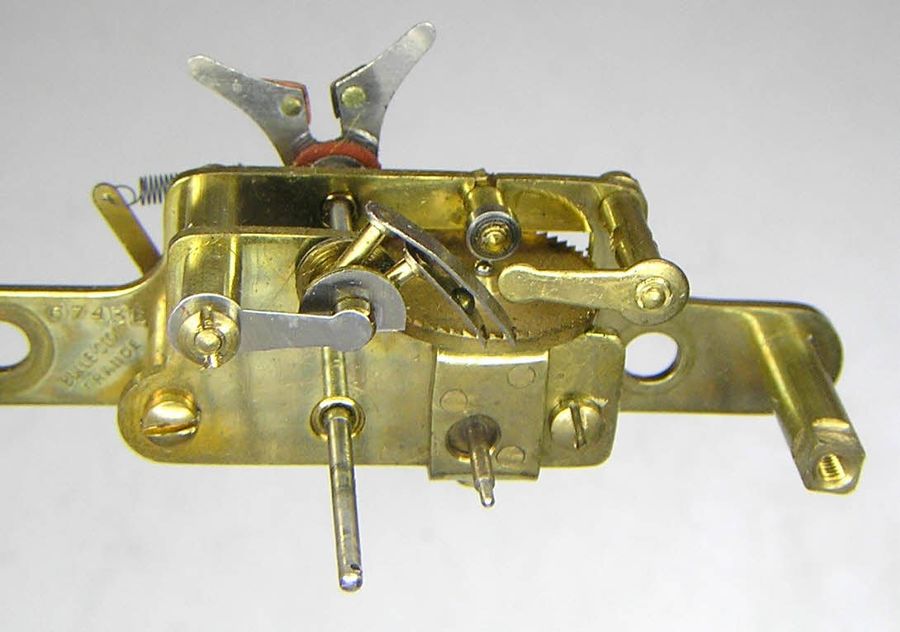

Bulle Nº 67438: photo from page 6 of the restoration notes
From page 6 of the notes

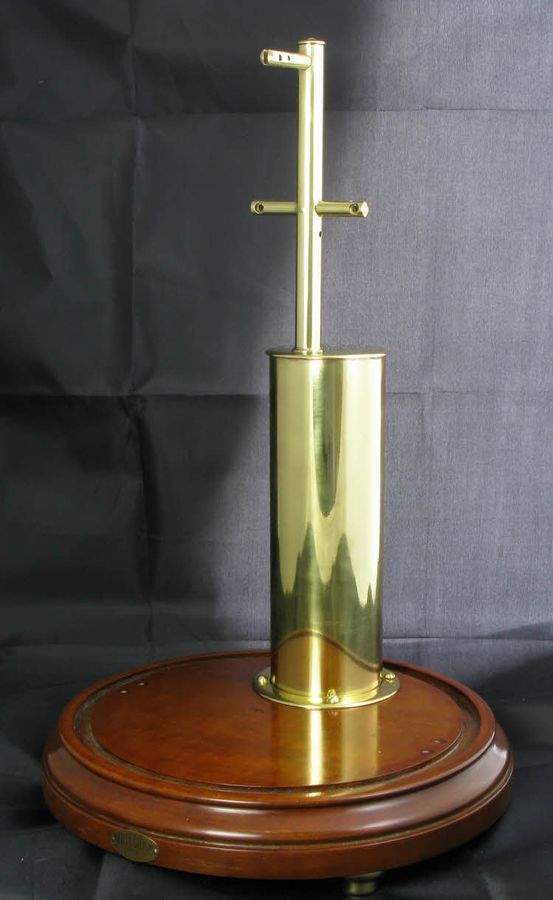

Bulle Nº 67438: photo from page 11 of the restoration notes
From page 11 of the notes

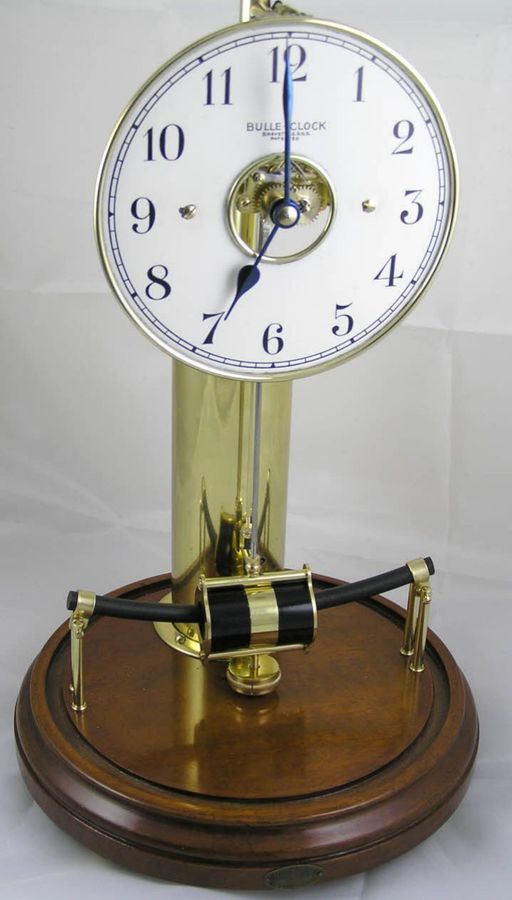

Bulle Nº 67438: photo from page 19 of the restoration notes
From page 19 of the notes

Read the full restoration notes · PDF 2.5 MB
