Bulle Nº 265502

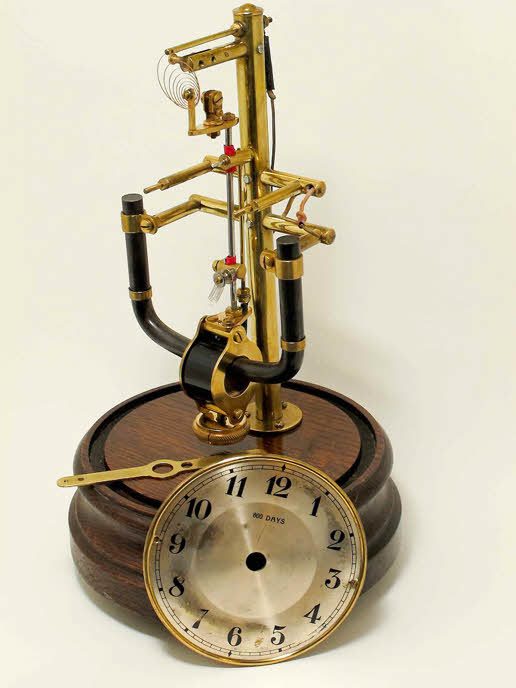

Bulle clock Nº 265502

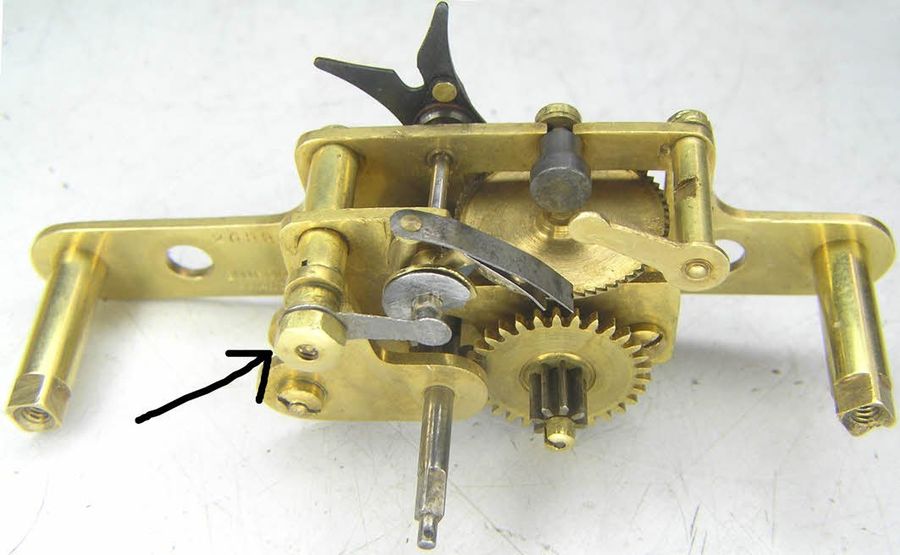

The movement as supplied. The owner retained the rest of the clock as he only wanted the movement restored. The main reason being the state of the fork arbour which will be apparent from the photos a little later. The first things to note are the nut on the front arbour stop is wrong. And the end of the fork arbour is plain steel instead of a silver button with groove for the Silver Contact Spring.

The bottom of the movement looks OK with all the nuts and screws present.

Make
Bulle
Serial number
265502
Case
Movement only
Movement
Three plate
Notes
Restoration notes, 2009
Full notes
PDF · 1.1 MB
Read the full restoration notes · PDF 1.1 MB

The complete write-up, with all the photographs, is in the PDF. It can be read on screen, saved or printed.

From the restoration

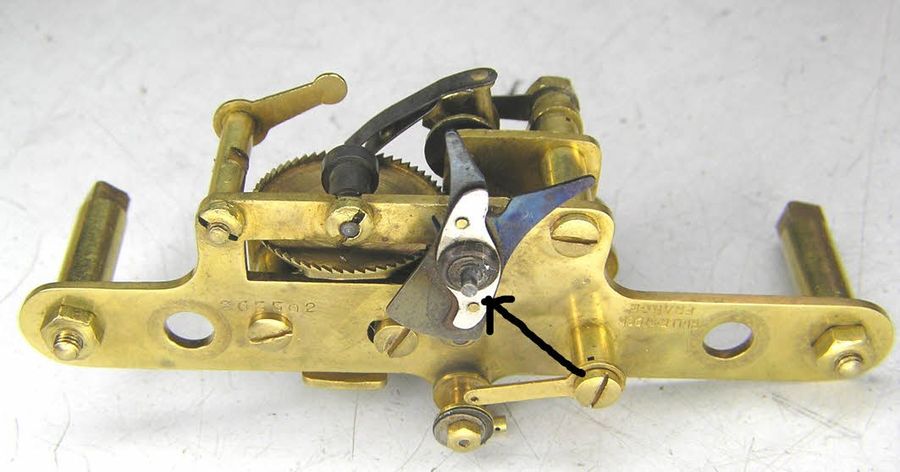

Bulle Nº 265502: photo from page 2 of the restoration notes
From page 2 of the notes

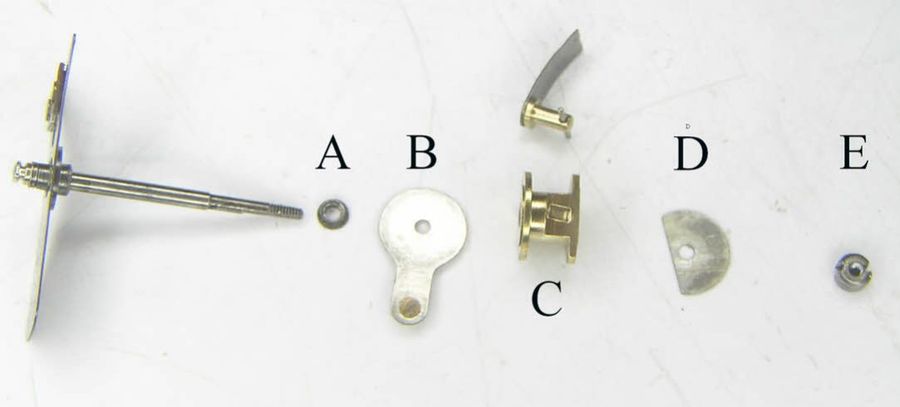

Bulle Nº 265502: photo from page 6 of the restoration notes
From page 6 of the notes

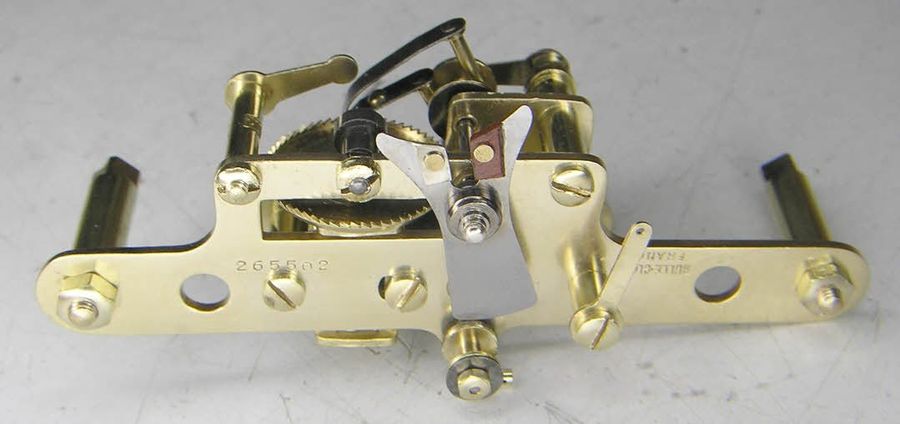

Bulle Nº 265502: photo from page 7 of the restoration notes
From page 7 of the notes

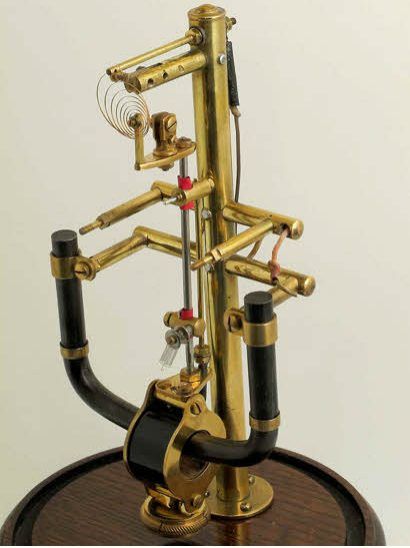

Bulle Nº 265502: photo from page 8 of the restoration notes
From page 8 of the notes

Read the full restoration notes · PDF 1.1 MB
