Bulle Nº 178735

Photos by kind permission of the owner.

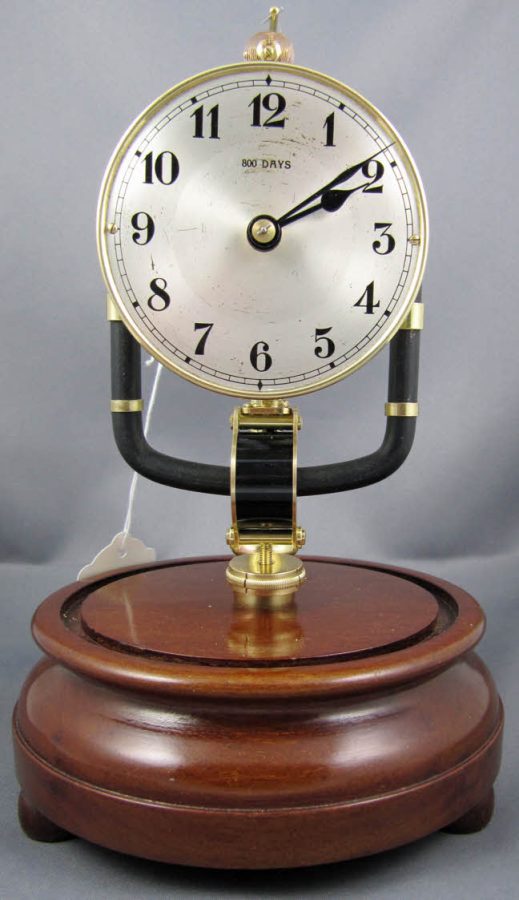

Bulle clock Nº 178735

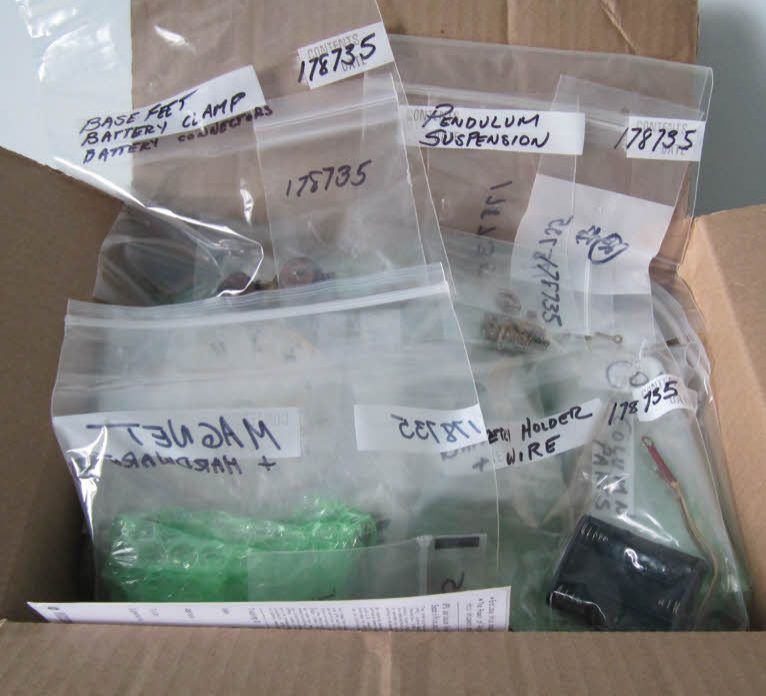

A short movement Clockette on a round wooden base. No dome supplied. The clock was delivered in parts well bagged up and tagged. Some of the sub assemblies were still complete such as the pendulum. After checking I found no parts missing and so it was just a job of cleaning and reassembling.

The pendulum complete as supplied. No parts missing.

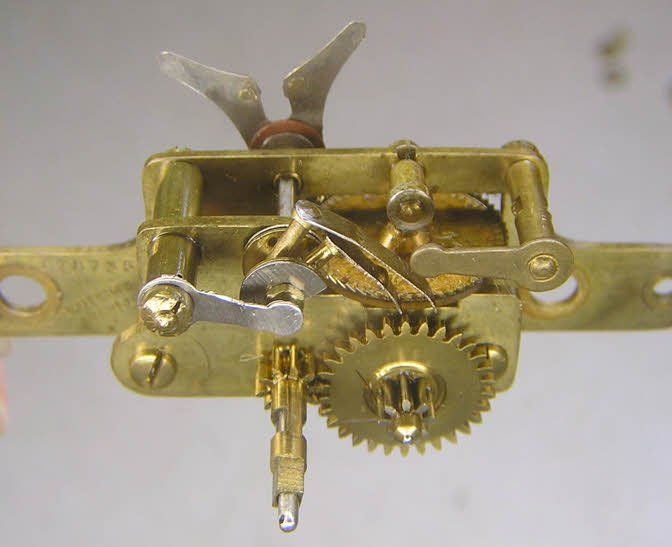

The movement itself is complete and in good condition. The fork fibre insulator is very worn and needs replacing. The silver contact though is pretty good with hardly any wear on the inside, so it will be kept. All the assemblies can now be stripped and cleaned.

The coil proved to be fine with a 1200 Ohm resistance. The lead out wires are OK and just need tidying up with new insulation.

Make
Bulle
Serial number
178735
Case
Under dome, short
Movement
Two plate
Notes
Restoration notes, 2012
Full notes
PDF · 910 KB
Read the full restoration notes · PDF 910 KB

The complete write-up, with all the photographs, is in the PDF. It can be read on screen, saved or printed.

From the restoration

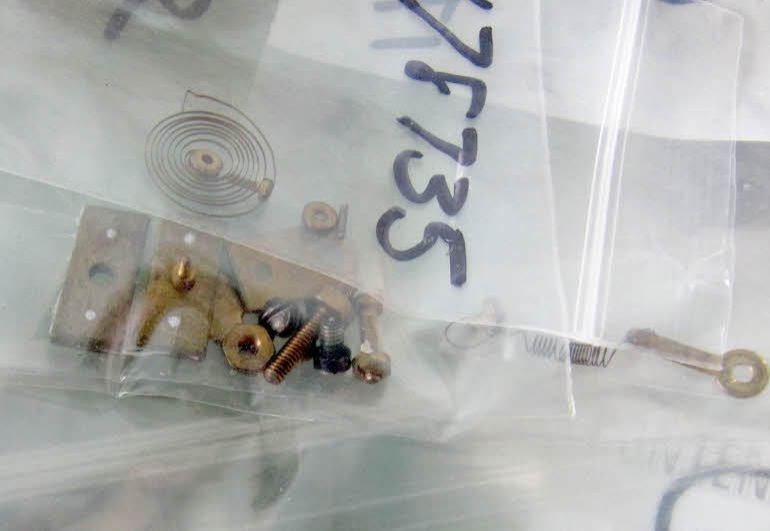

Bulle Nº 178735: photo from page 2 of the restoration notes
From page 2 of the notes

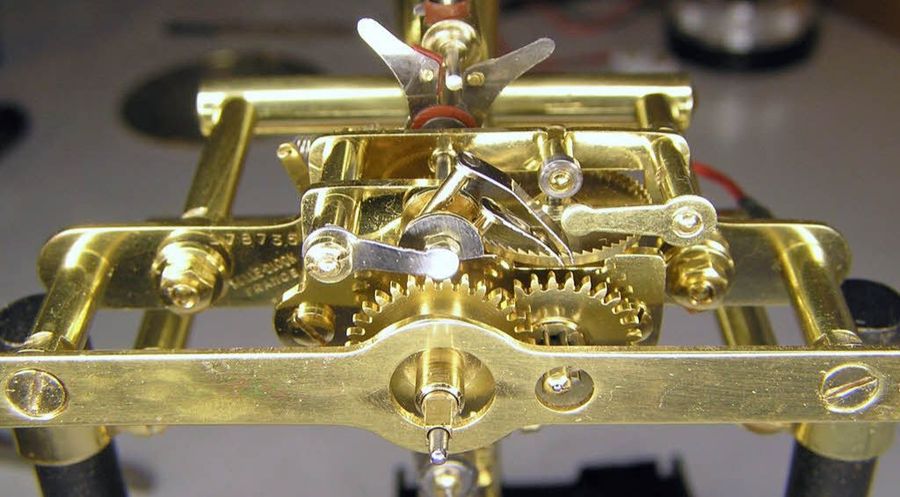

Bulle Nº 178735: photo from page 5 of the restoration notes
From page 5 of the notes

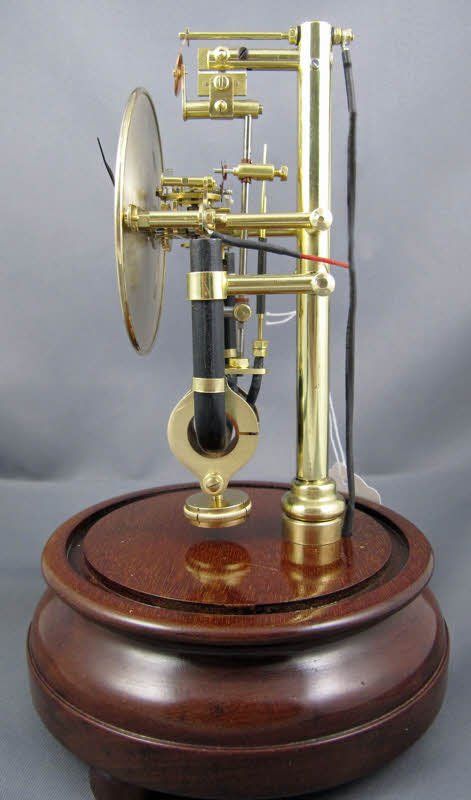

Bulle Nº 178735: photo from page 6 of the restoration notes
From page 6 of the notes
Bulle Nº 178735: photo from page 6 of the restoration notes
From page 6 of the notes

Read the full restoration notes · PDF 910 KB
