Restoration

Bulle Nº 123079

Photos by kind permission of the owner.

Bulle clock Nº 123079

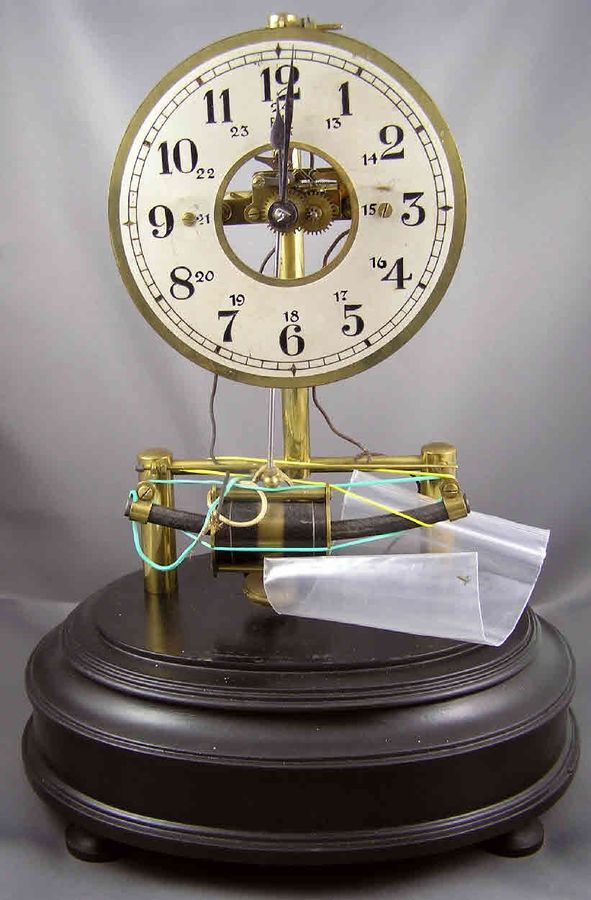

The clock as delivered is of medium length pendulum set on a black oval wood base. The dome would be a crystal type (not supplied), First things of interest are the small plastic bag containing one of the Isochron “T” piece hangers either from the pendulum or main plate; we’ll see which later. The dial looks reasonable although it has buckled at the two points where the dial screws hold it to the movement. The silvering has also worn away at these points. The base has been resprayed at some point and has been left quite dull and rough. The coil leads into the cover look as though they have been pulled out and seem excessive in length. The brass rod which runs up the back of the pendulum and joins the contact pin is also supplied loose.

Make
Bulle
Serial number
123079
Case
Under dome, tall
Movement
Two plate
Notes
Restoration notes, 2009
Full notes
PDF · 1.4 MB
Read the full restoration notes · PDF 1.4 MB

The complete write-up, with all the photographs, is in the PDF. It can be read on screen, saved or printed.

From the restoration

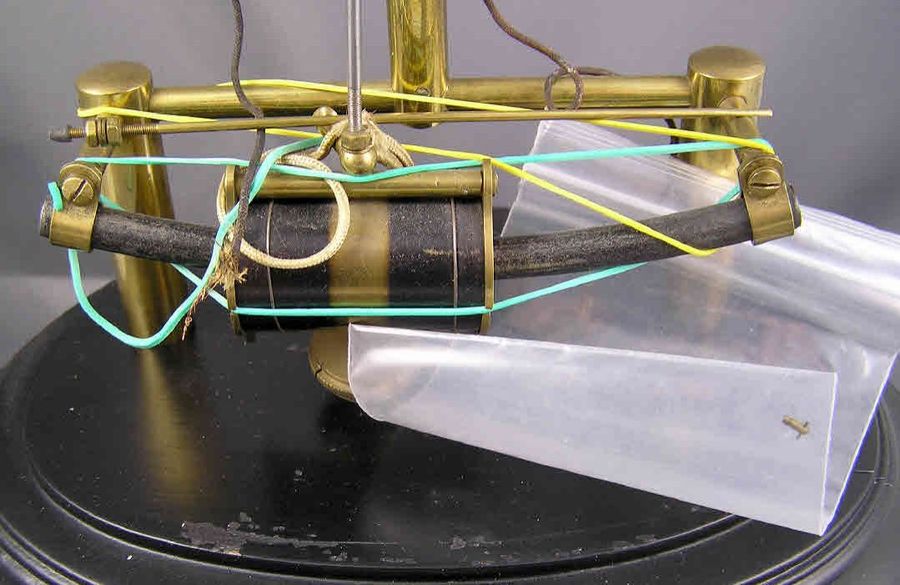

Bulle Nº 123079: photo from page 3 of the restoration notes
From page 3 of the notes

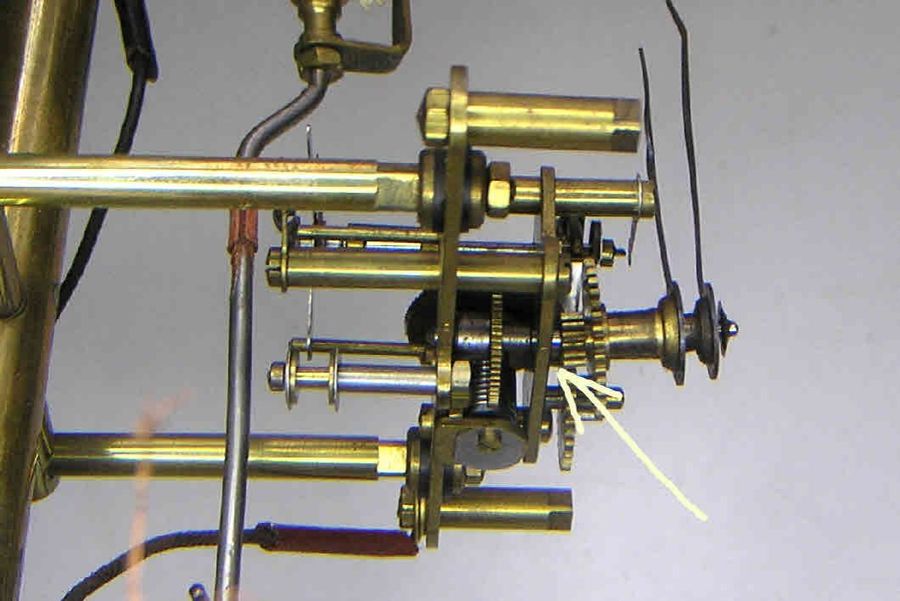

Bulle Nº 123079: photo from page 6 of the restoration notes
From page 6 of the notes

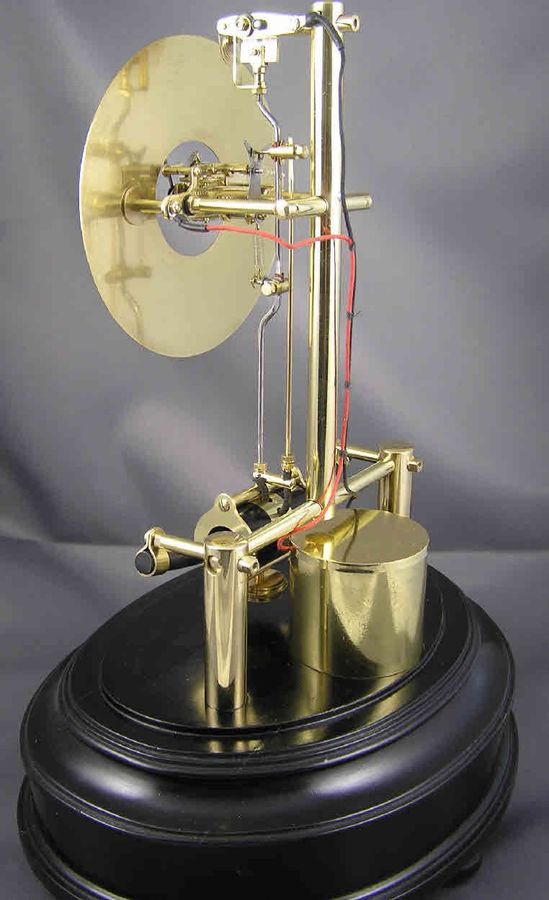

Bulle Nº 123079: photo from page 13 of the restoration notes
From page 13 of the notes

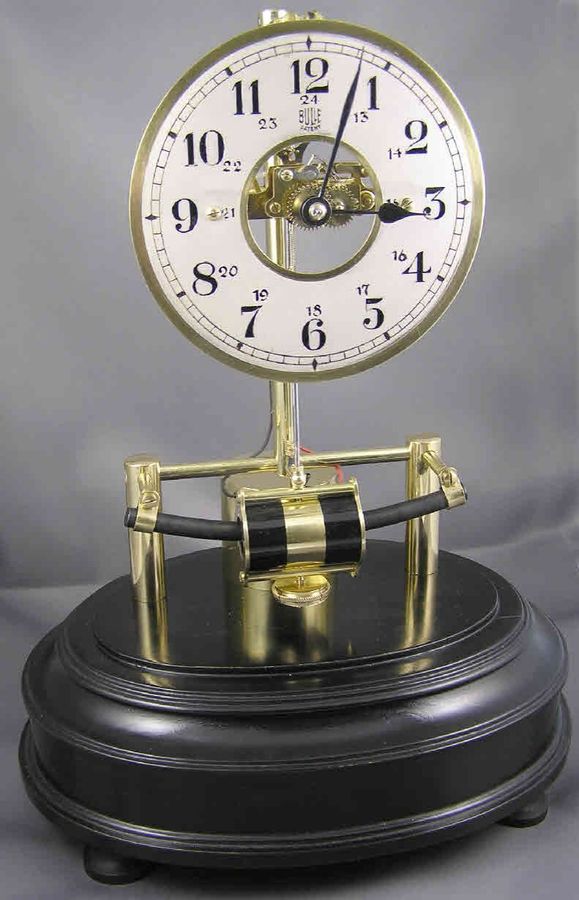

Bulle Nº 123079: photo from page 14 of the restoration notes
From page 14 of the notes

Read the full restoration notes · PDF 1.4 MB
