HorologixBulle & Eureka Parts & Restorations

Restoration

Eureka Nº 9082

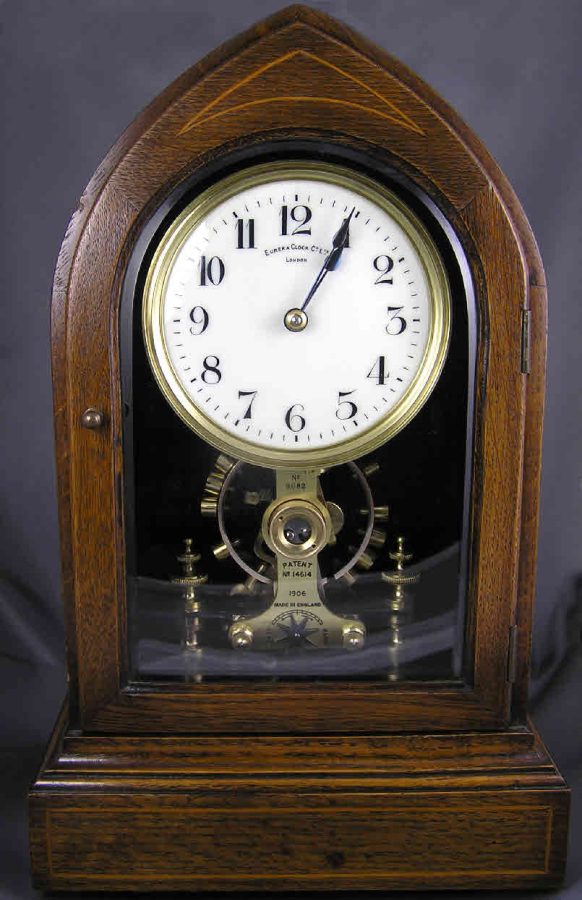

Eureka clock Nº 9082

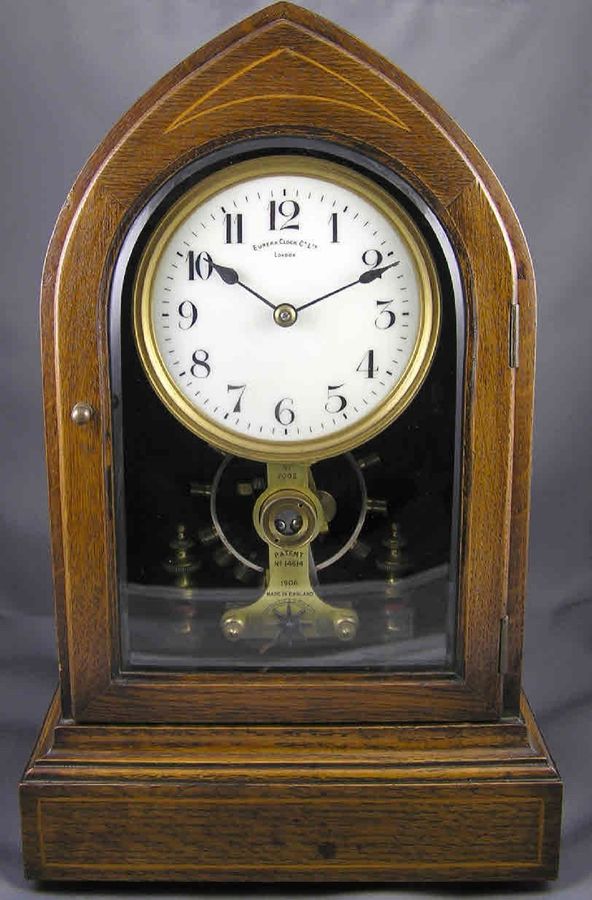

The clock has a tall movement with two ball bearing and steel shim protector. The dial is the usual ceramic with no seconds subsidiary. The e movement is housed in very nice oak lancet style case with bevelled glass front door. Everything looks fine and complete.

The rear of the case has a full length oak door made of three pieces.

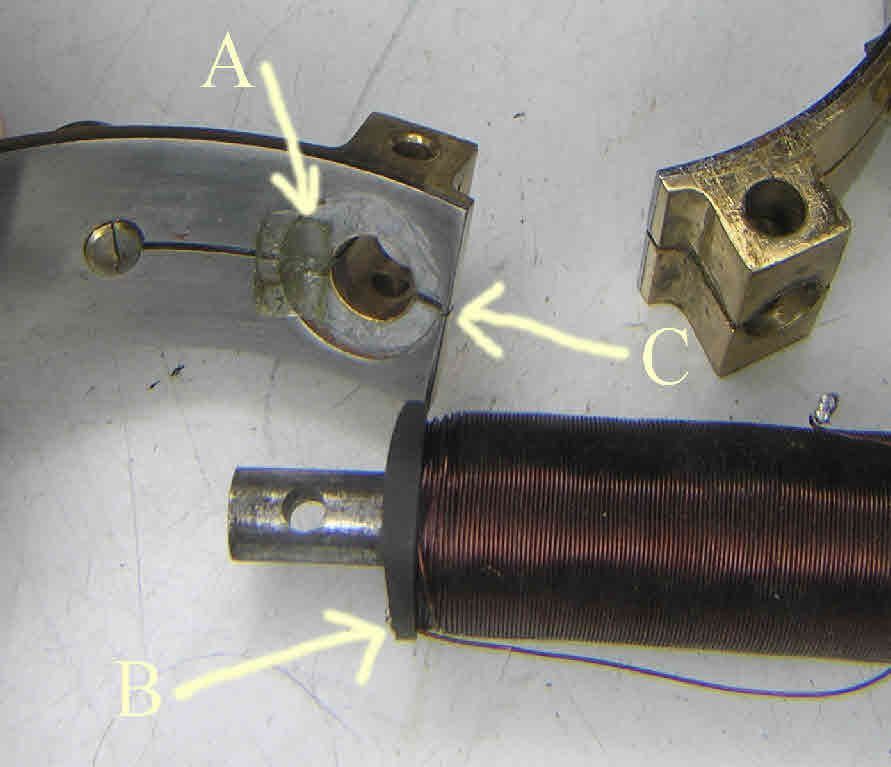

This is rather odd. Note that at A and B there are what looks like two rubber washers. Why are these here. They provide no function other than to lift the movement higher in the case or to prevent the long case screws from bottoming in the knurled caps. Either way, they are not original.

Make
Eureka
Serial number
9082
Case
Lancet case
Movement
Tall movement
Notes
Restoration notes, 2009
Full notes
PDF · 1.4 MB
Read the full restoration notes · PDF 1.4 MB

The complete write-up, with all the photographs, is in the PDF. It can be read on screen, saved or printed.

From the restoration

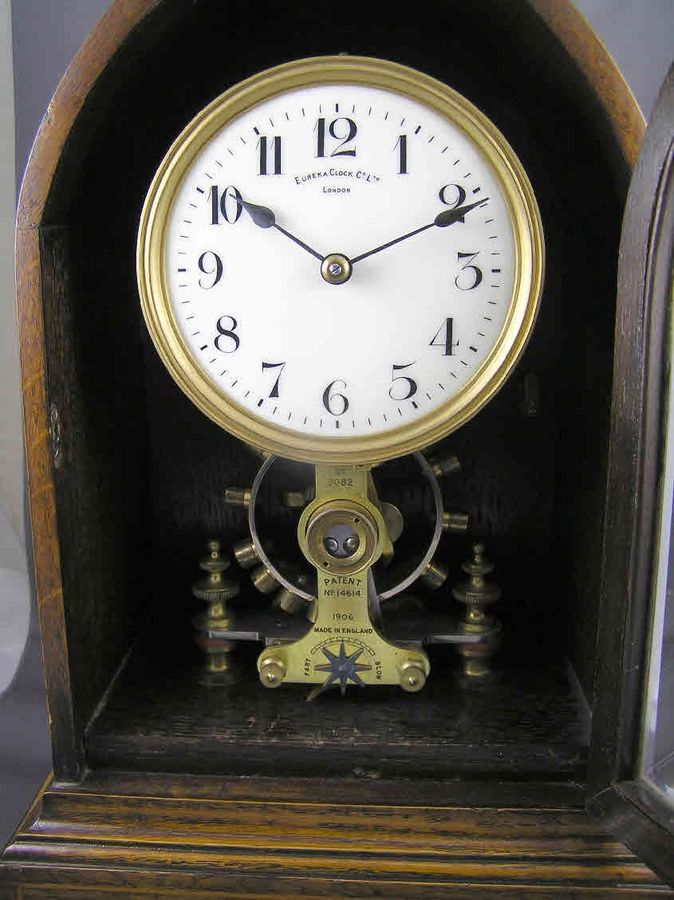

Eureka Nº 9082: photo from page 3 of the restoration notes
From page 3 of the notes
Eureka Nº 9082: photo from page 8 of the restoration notes
From page 8 of the notes

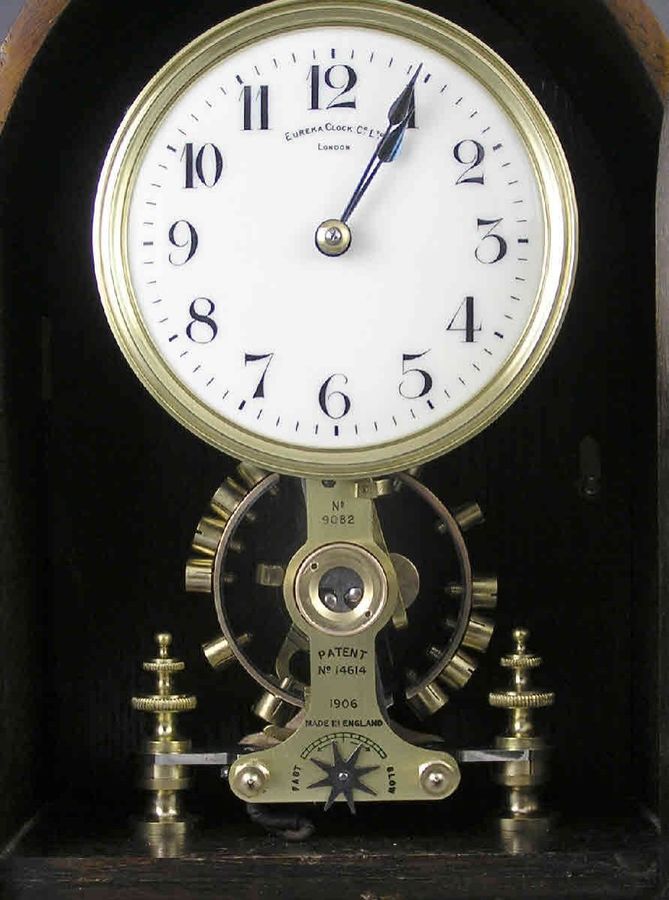

Eureka Nº 9082: photo from page 13 of the restoration notes
From page 13 of the notes
Eureka Nº 9082: photo from page 14 of the restoration notes
From page 14 of the notes

Read the full restoration notes · PDF 1.4 MB
