Eureka Nº 3309

Photos by kind permission of the owner.

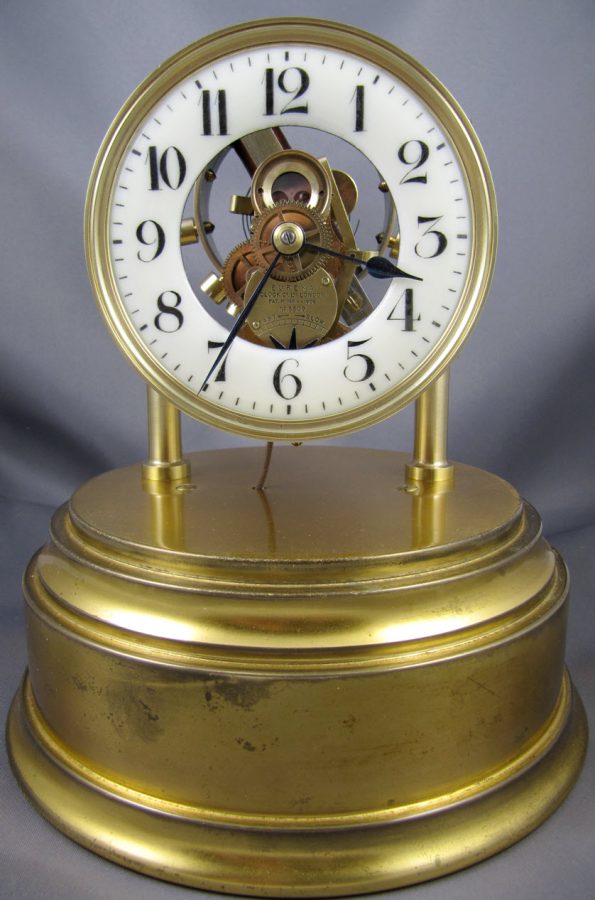

Eureka clock Nº 3309

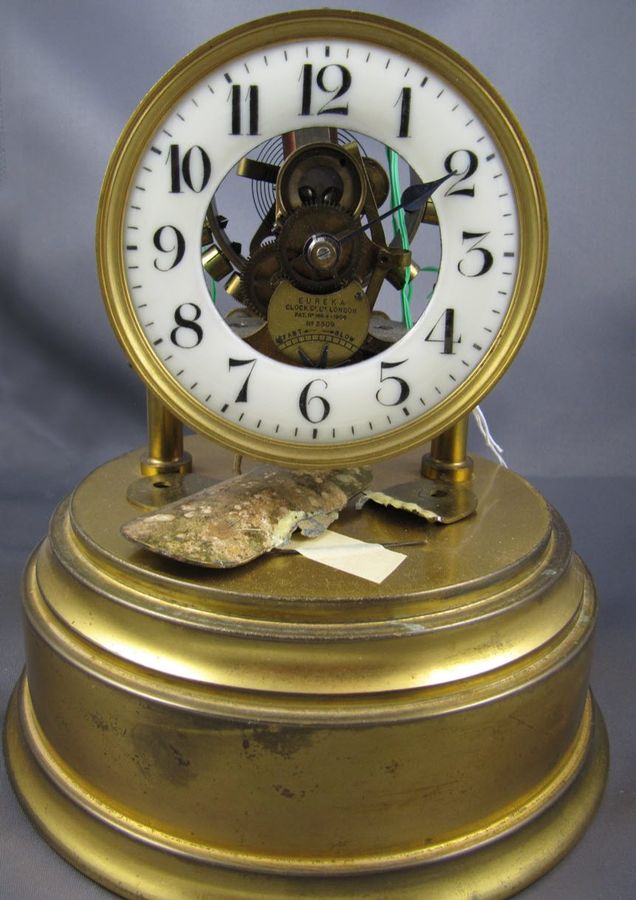

A short movement clock with the open dial displaying the balance wheel situated behind the movement The round pressed brass base is in good condition and will only need a wax coat to protect it. There is a temptation when restoring these clocks to remove the gilding and polish up the brass but this should be resisted. As can be seen from the photo the minute hand is broken as well as the battery retainer. The rest of the clock looks to be OK.

This detail shows the remains of the minute hand taped to the base. The battery retainer is in a very bad way and seems to have been eaten through by leaking battery acid. One good thing about this style of Eureka clock is that the battery being housed in an open base, cannot leak acid onto the base itself and so you rarely find base with bad acid damage.

Make
Eureka
Serial number
3309
Case
Under dome, short
Movement
Short movement
Notes
Restoration notes, 2010
Full notes
PDF · 2.8 MB
Read the full restoration notes · PDF 2.8 MB

The complete write-up, with all the photographs, is in the PDF. It can be read on screen, saved or printed.

From the restoration

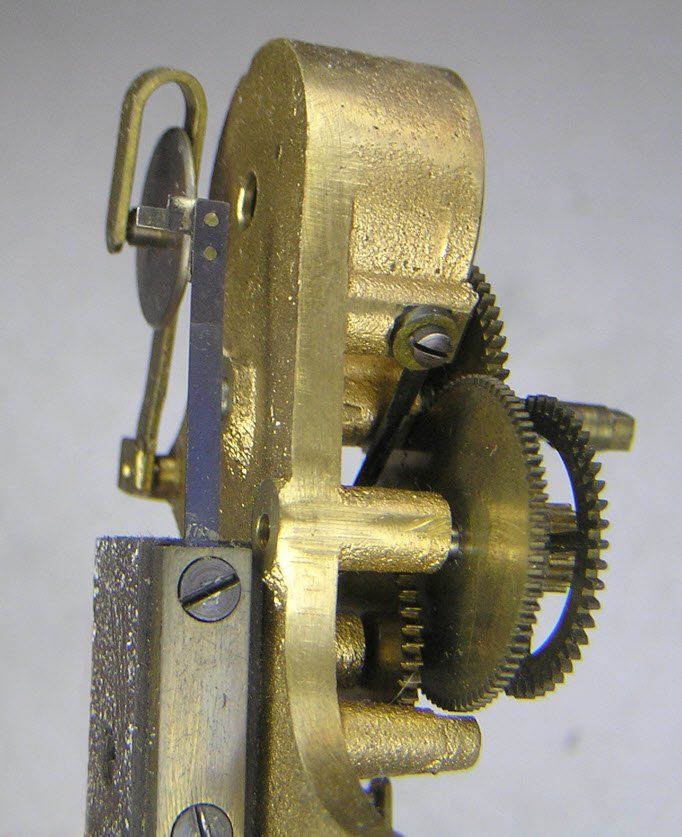

Eureka Nº 3309: photo from page 6 of the restoration notes
From page 6 of the notes

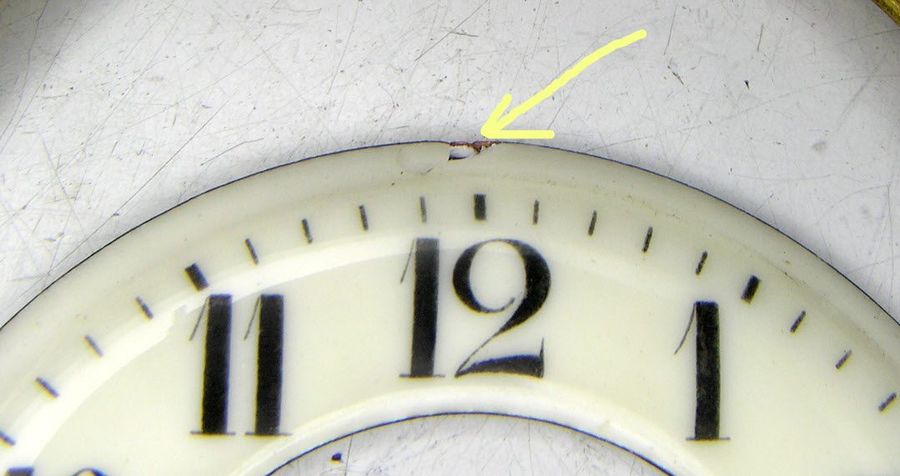

Eureka Nº 3309: photo from page 7 of the restoration notes
From page 7 of the notes

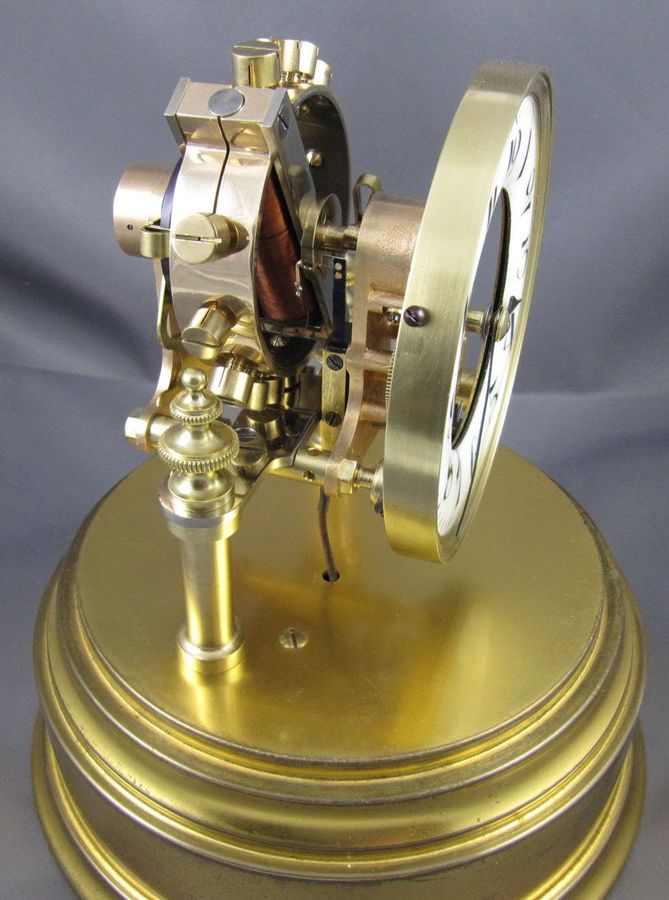

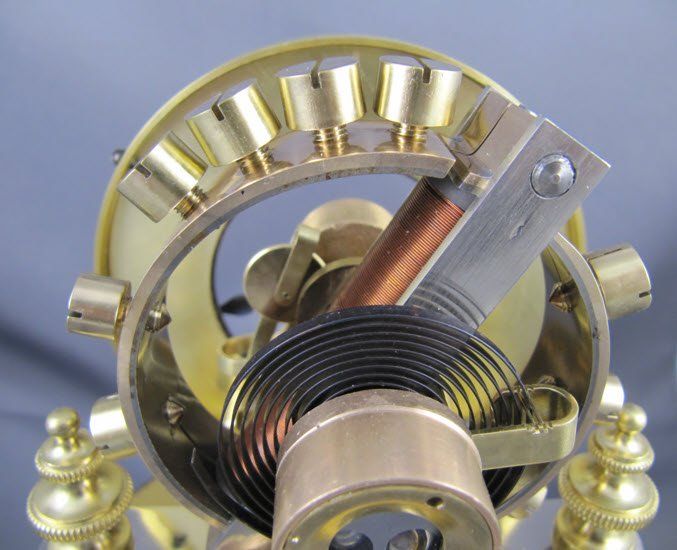

Eureka Nº 3309: photo from page 10 of the restoration notes
From page 10 of the notes

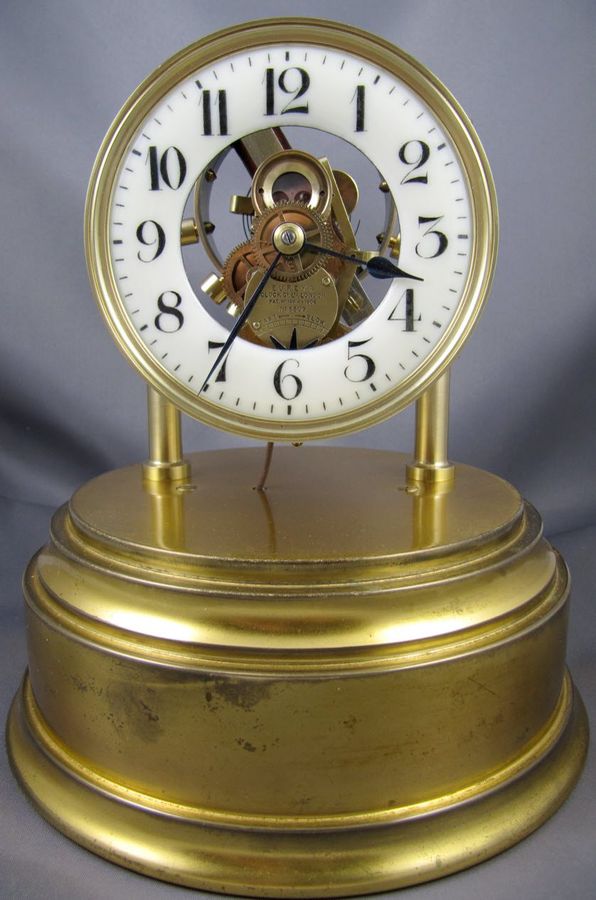

Eureka Nº 3309: photo from page 11 of the restoration notes
From page 11 of the notes

Read the full restoration notes · PDF 2.8 MB
