HorologixBulle & Eureka Parts & Restorations

Restoration

Bulle Nº 5909

By kind permission of the owner.

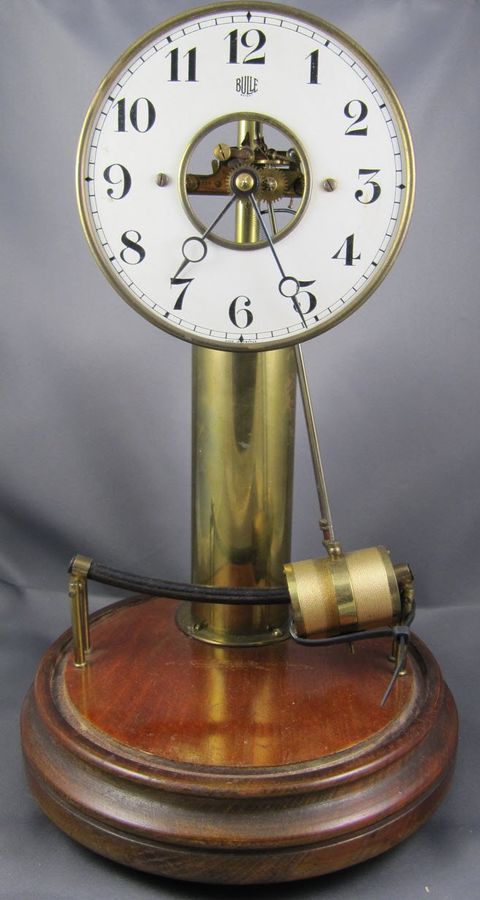

Bulle clock Nº 5909

A tall early movement on a round wooden base. The dial is in excellent condition with no major blemishes. The base is a little tired and missing label and brass banding. The hands moon hands are original and just need tidying and painting.

The base will need to be stripped and polished whilst the column will need to be cleaned and then the acid burns treated. There are also some marks on the outside of the tube which may not polish out. The suspension is an easy job to replace and will present no problems. But there is the old problem of the rating nut being reduced in mass to try and lighten it and thereby speed the clock up. In all my time in restoring Bulles I have never needed to adjust the weight of this nut. If the movement and pendulum are cleaned and restored correctly then the rating nut as supplied with the clock will work just fine.

Make
Bulle
Serial number
5909
Case
Under dome, tall
Movement
Full plate
Notes
Restoration notes, 2010
Full notes
PDF · 2.5 MB
Read the full restoration notes · PDF 2.5 MB

The complete write-up, with all the photographs, is in the PDF. It can be read on screen, saved or printed.

From the restoration

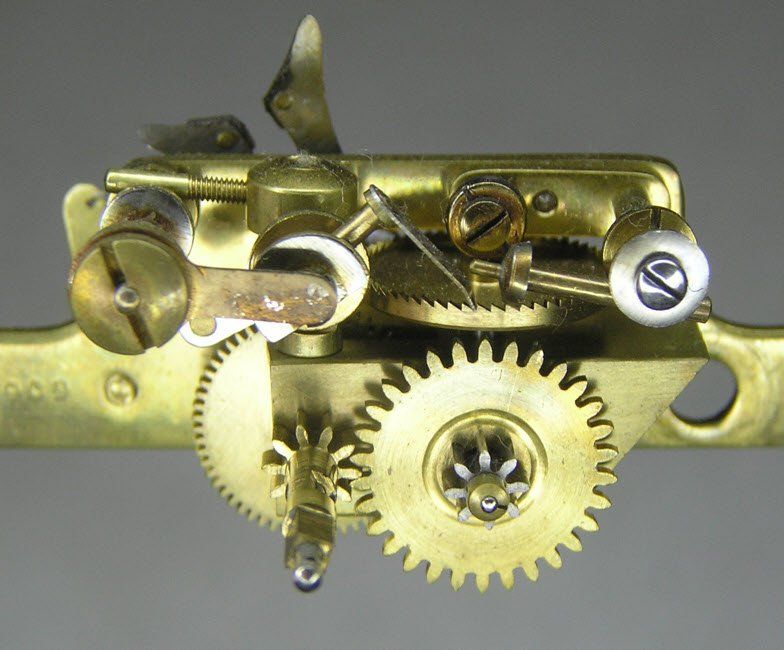

Bulle Nº 5909: photo from page 5 of the restoration notes
From page 5 of the notes

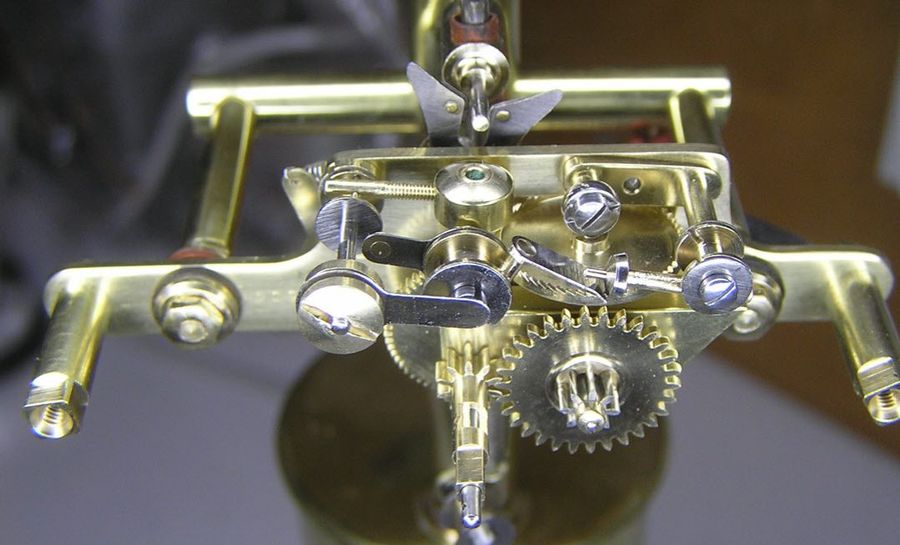

Bulle Nº 5909: photo from page 8 of the restoration notes
From page 8 of the notes

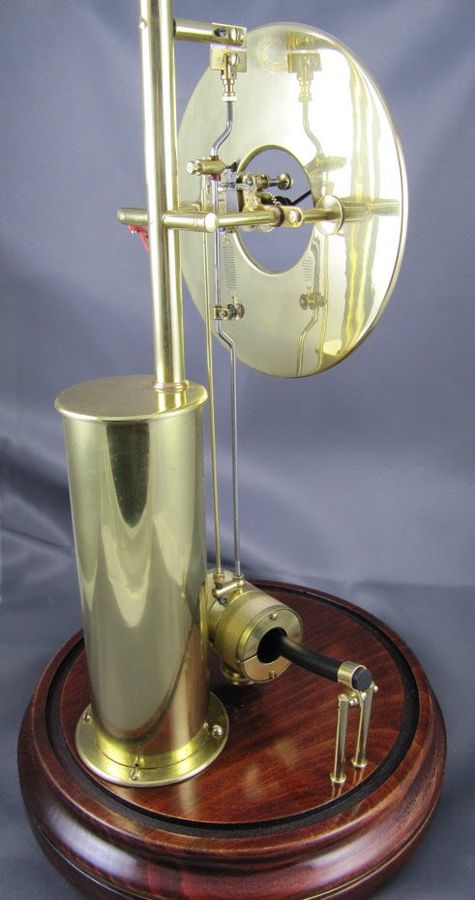

Bulle Nº 5909: photo from page 10 of the restoration notes
From page 10 of the notes

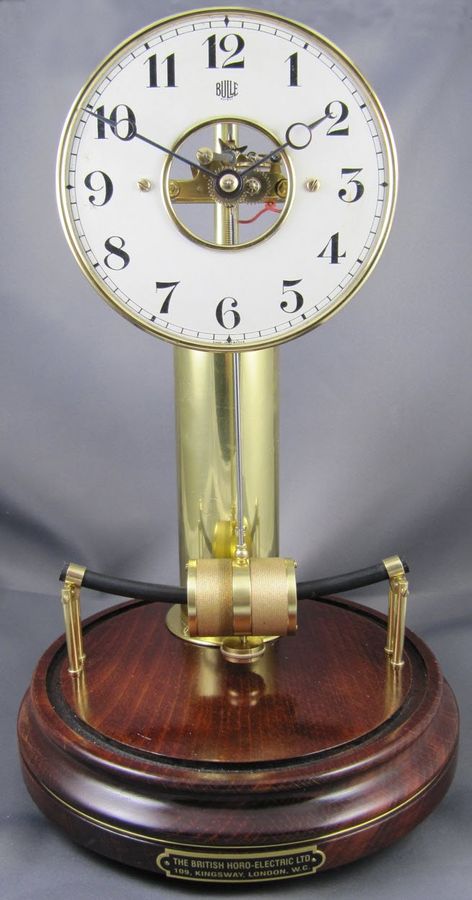

Bulle Nº 5909: photo from page 10 of the restoration notes
From page 10 of the notes

Read the full restoration notes · PDF 2.5 MB
