Restoration

Bulle Nº 57561

Clock Restoration pictures by kind permission of the owner.

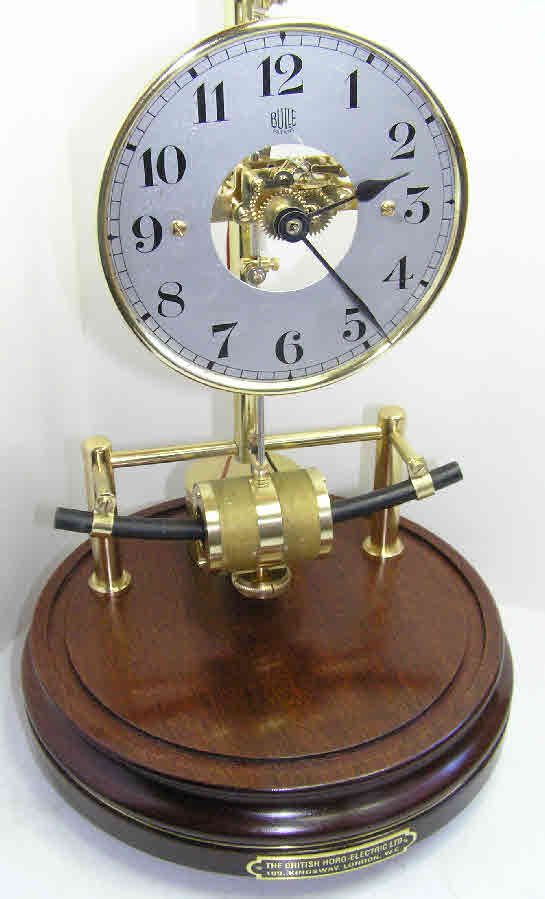

Bulle clock Nº 57561

The clock as delivered. It came without a case and the owner would like it mounted on a round wooden base under a glass dome in a similar fashion to the tall Bulle movements with a 29cm pendulum (Type A). This movement has the slightly shorter 24cm pendulum normally associated with a cased clock. The magnet though is the same length so it should fit OK on the same type base. The only problem will be the height of the dome.

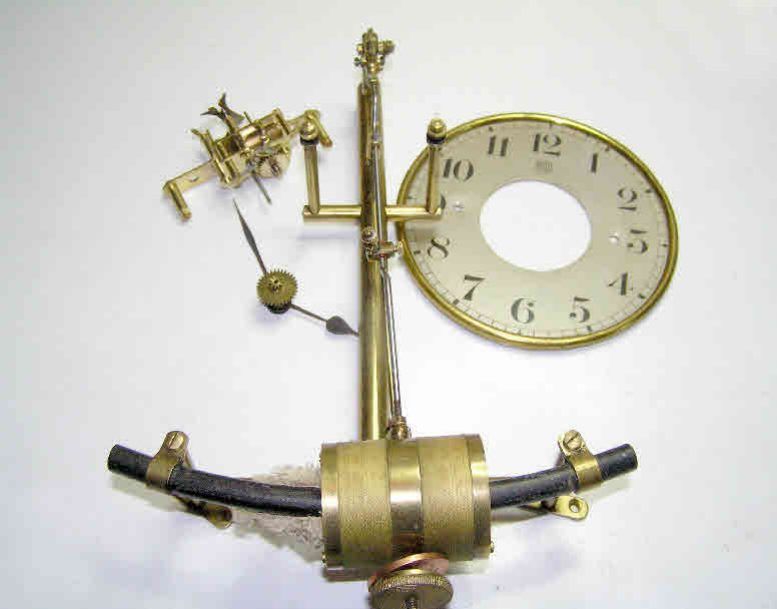

The clock has a few problems though. The two penny piece has been added because the nut has been cut down!!

This is the type “A” clock we will be using as a template for our new frame parts. We’ll need two pillars with decorative washers. These will. be secured from underneath by 6mm screws. The original clock has a slightly deeper base to house the battery . Our new base is solid wood and will house the battery in a short column that will protrude through to the top as was common on the Crystal dome Bulle clocks. The new base will also require a third brass levelling foot.

Make
Bulle
Serial number
57561
Case
Under dome, tall
Movement
Two plate
Notes
Restoration notes, 2007
Full notes
PDF · 1.4 MB
Read the full restoration notes · PDF 1.4 MB

The complete write-up, with all the photographs, is in the PDF. It can be read on screen, saved or printed.

From the restoration

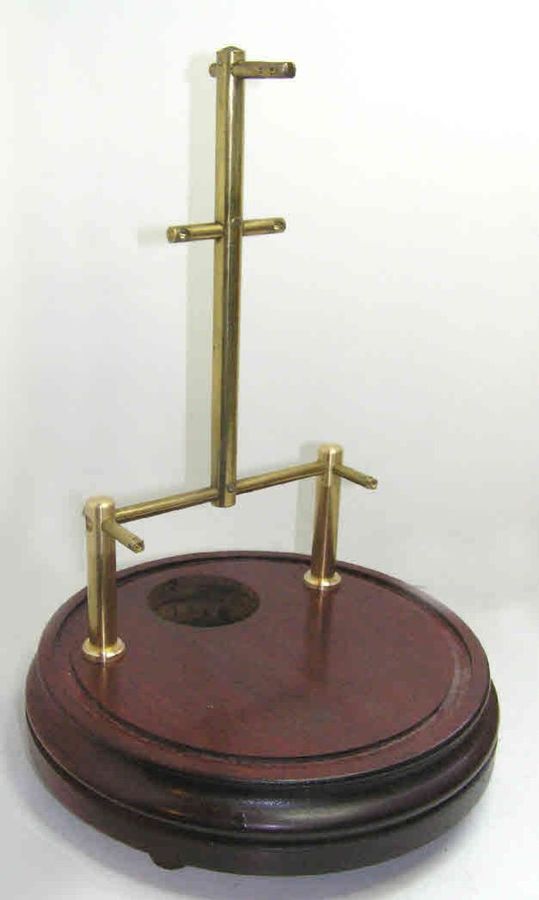

Bulle Nº 57561: photo from page 5 of the restoration notes
From page 5 of the notes

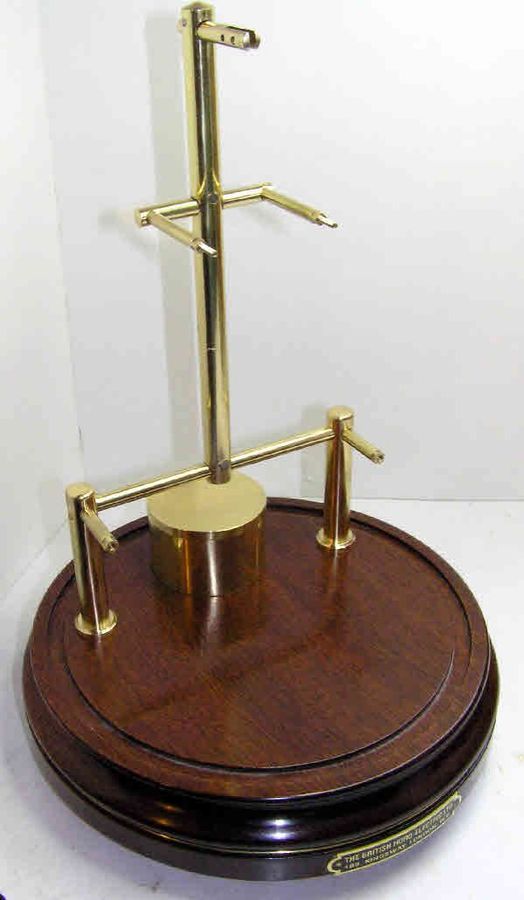

Bulle Nº 57561: photo from page 11 of the restoration notes
From page 11 of the notes

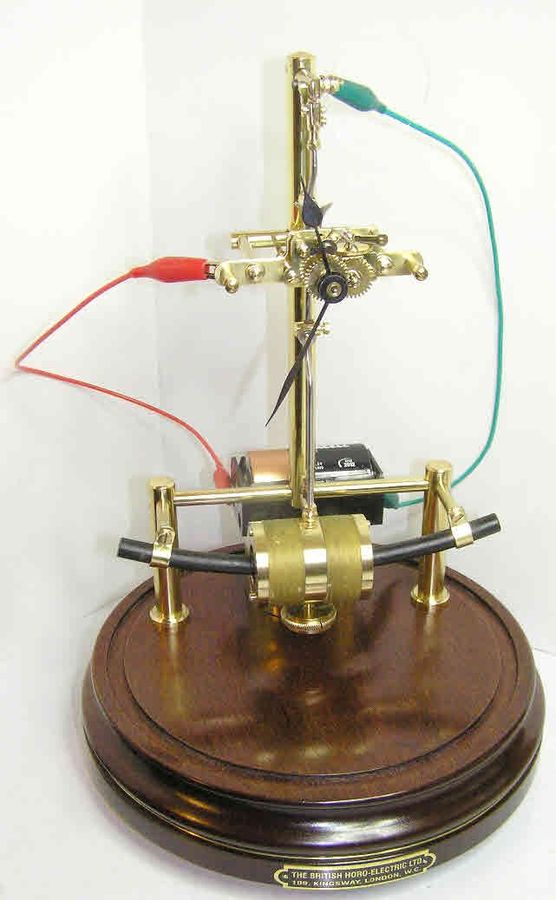

Bulle Nº 57561: photo from page 12 of the restoration notes
From page 12 of the notes

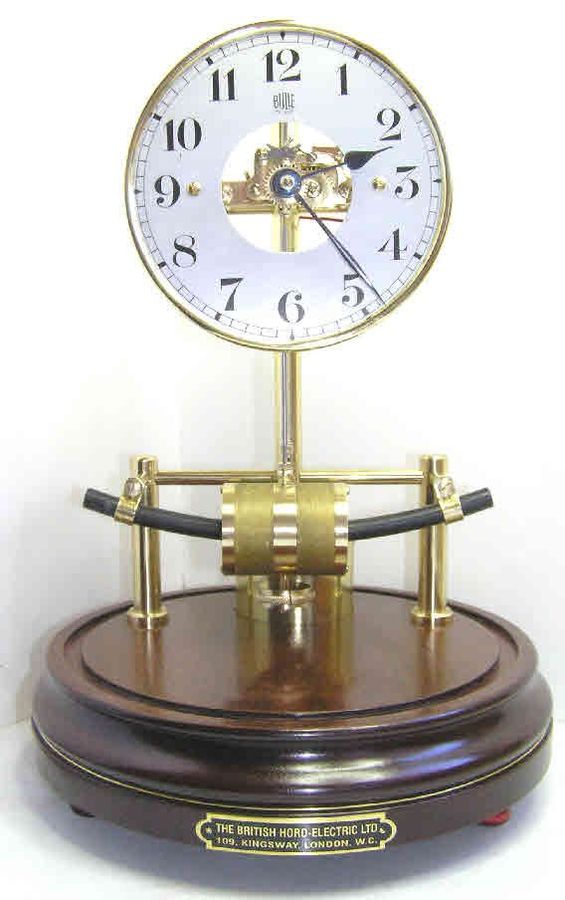

Bulle Nº 57561: photo from page 14 of the restoration notes
From page 14 of the notes
