Bulle Nº 258493

Restoration photos by kind permission of the owner.

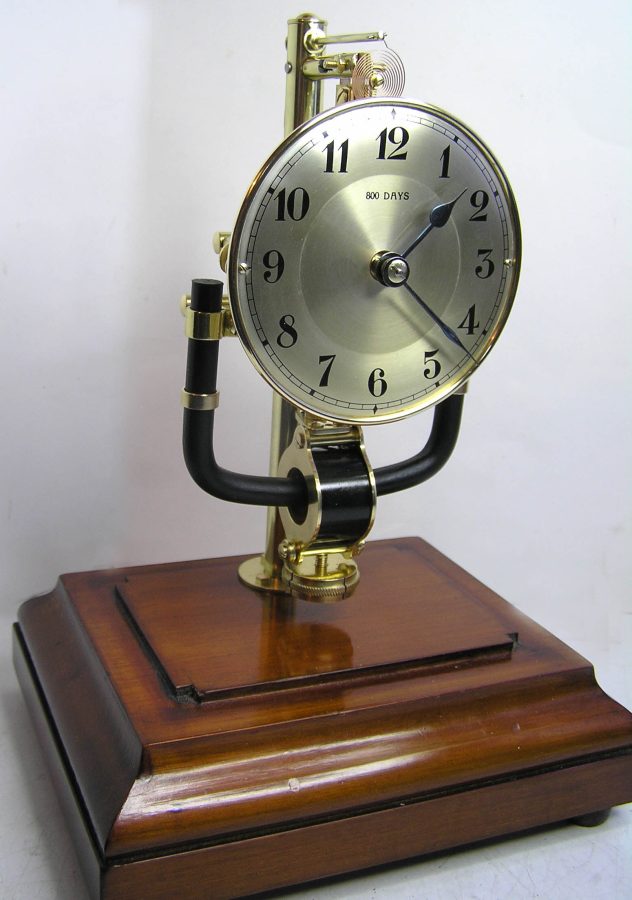

Bulle clock Nº 258493

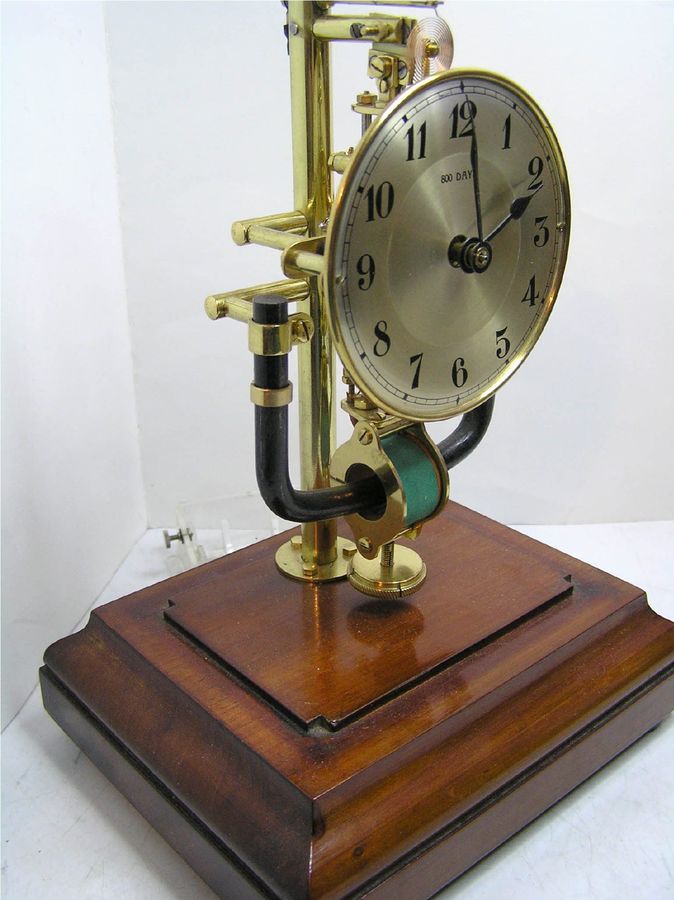

A short movement clockette, s/n 258493. The case is a four glass design with wood base and top and four pillars of brass. The top has been retained by the owner to reduce possible damage in transit. The clock appears to be in good condition although it does not work at all on a 1.5 volt battery.

As can be seen above the movement seems to be in good condition with no parts missing. One interesting extra though is the washer applied to the lower pendulum assembly. I assume it has been placed there to allow the nut and bolt to tighten the assembly against the suspension. But this is wrong. The unit has been designed this way to allow the pendulum to swing forward and back and find it’s own level on an uneven surface. This washer will be removed.

Make
Bulle
Serial number
258493
Case
Under dome, short
Movement
Three plate
Notes
Restoration notes, 2007
Full notes
PDF · 2.3 MB
Read the full restoration notes · PDF 2.3 MB

The complete write-up, with all the photographs, is in the PDF. It can be read on screen, saved or printed.

From the restoration

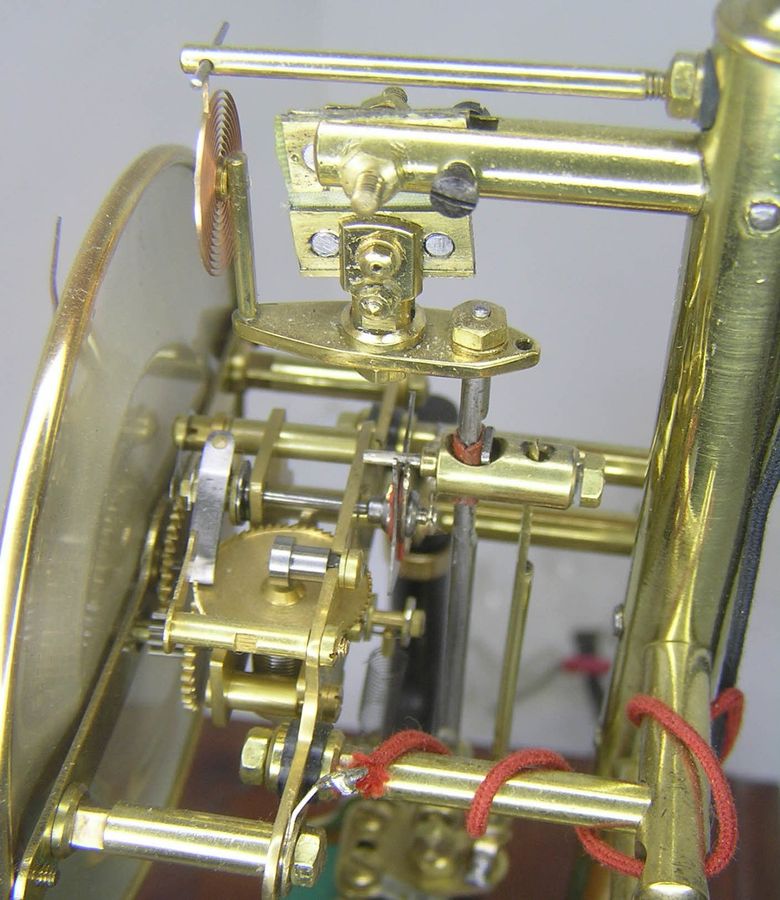

Bulle Nº 258493: photo from page 3 of the restoration notes
From page 3 of the notes

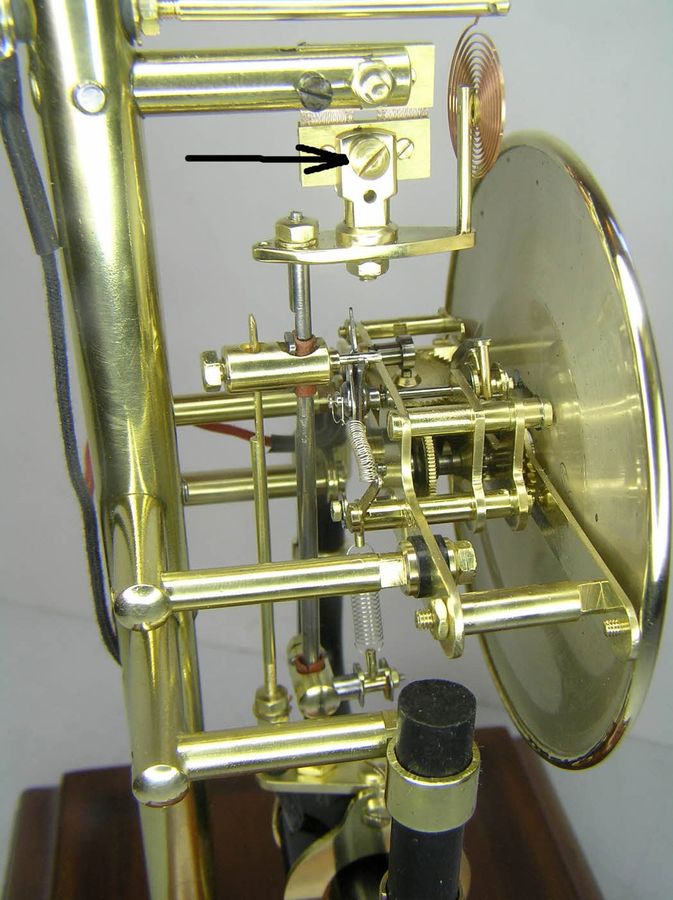

Bulle Nº 258493: photo from page 7 of the restoration notes
From page 7 of the notes

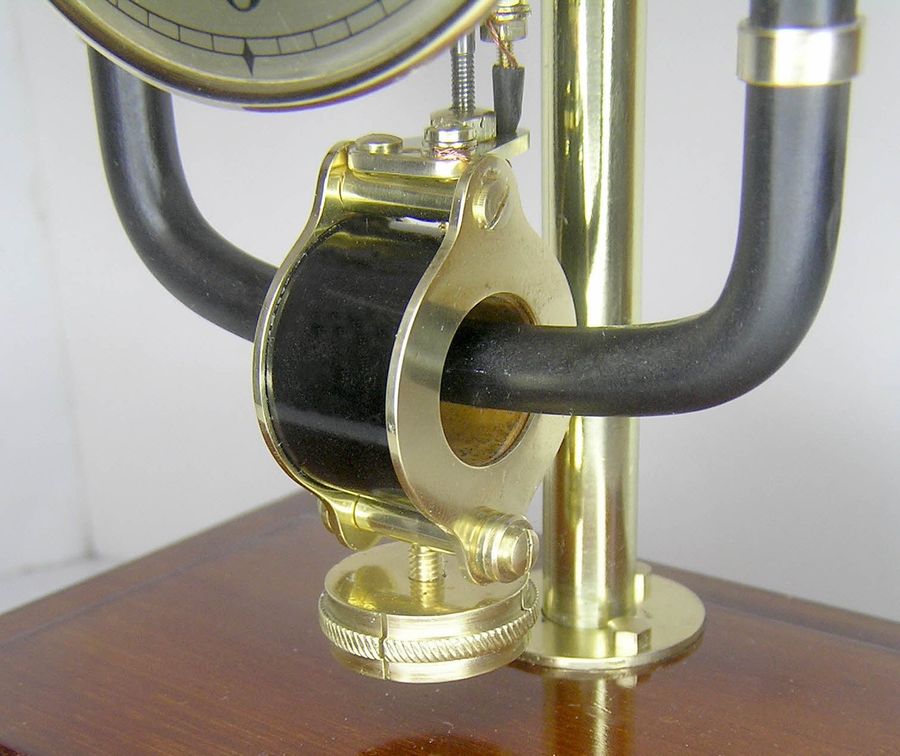

Bulle Nº 258493: photo from page 7 of the restoration notes
From page 7 of the notes

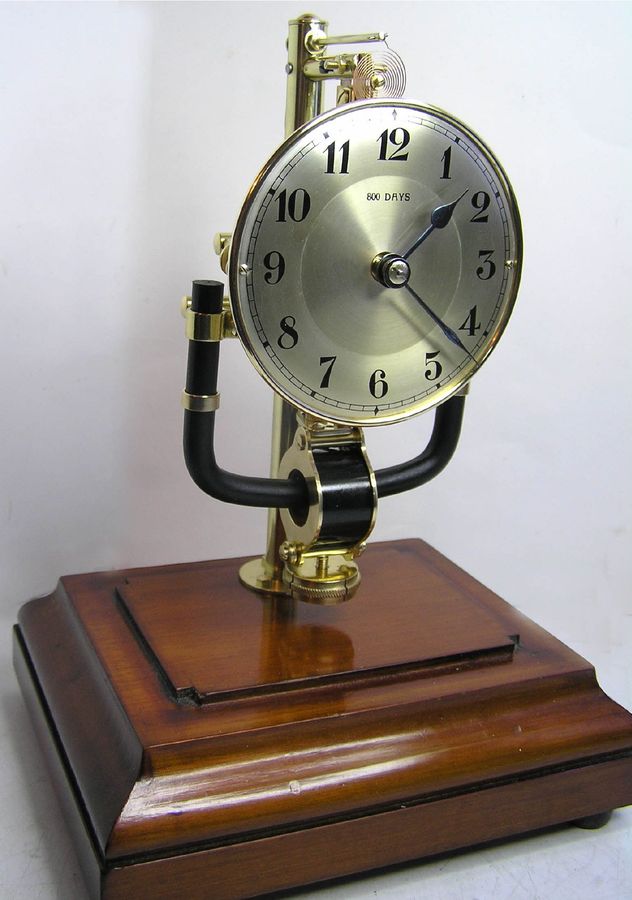

Bulle Nº 258493: photo from page 8 of the restoration notes
From page 8 of the notes

Read the full restoration notes · PDF 2.3 MB
