Bulle Nº 19185

Photos by kind permission of the owner.

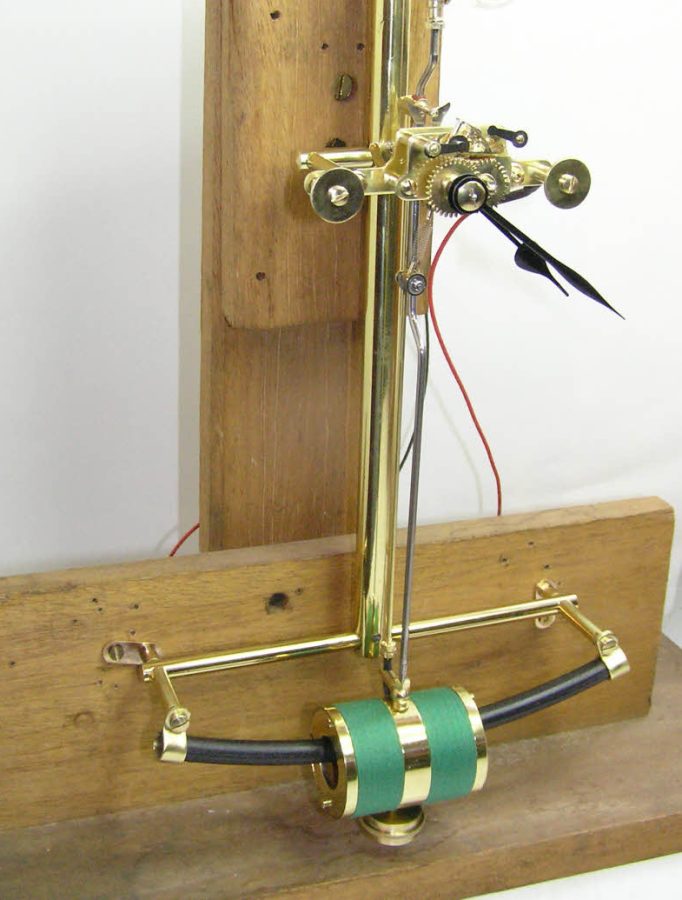

Bulle clock Nº 19185

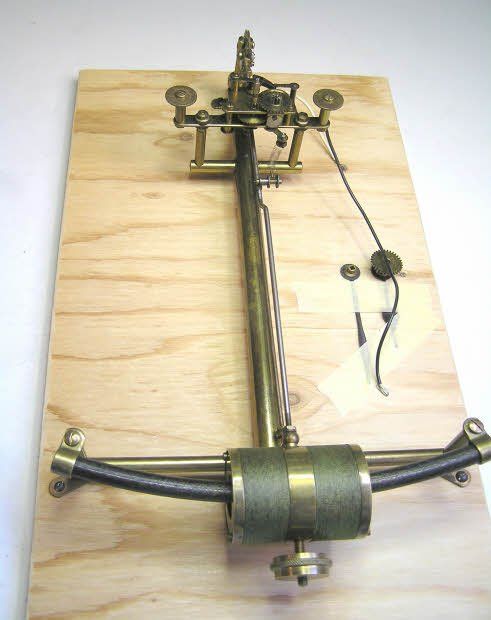

This clock has been delivered well secured to a plywood base. But without the case or dial. The first thing to note is the discolouration of the cord. This looks to be either oil contamination of some form of waxy substance. We’ll remove this and rewind with new cord. The second thing is that the intermediate wheel arbour is missing it’s retaining collar and it stands rather high near the end of the arbour. This will have to be investigated.

Make
Bulle
Serial number
19185
Case
Movement only
Movement
Two plate
Notes
Restoration notes, 2008
Full notes
PDF · 1.5 MB
Read the full restoration notes · PDF 1.5 MB

The complete write-up, with all the photographs, is in the PDF. It can be read on screen, saved or printed.

From the restoration

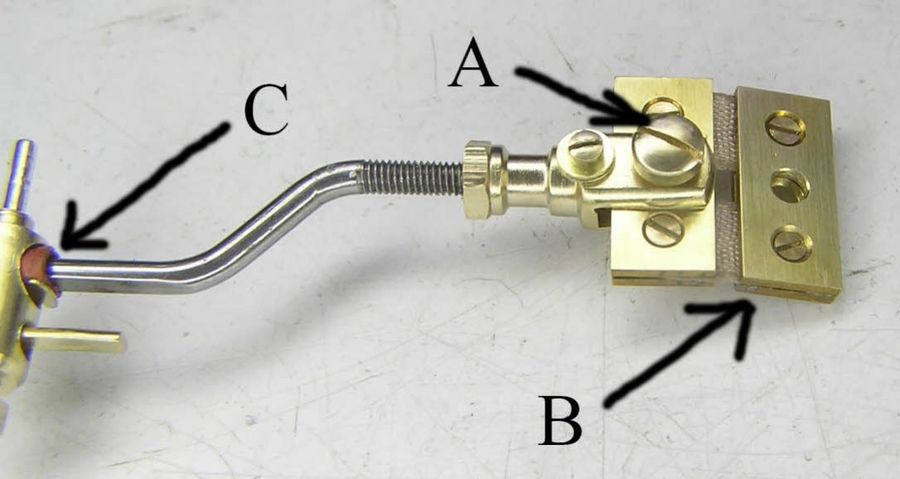

Bulle Nº 19185: photo from page 7 of the restoration notes
From page 7 of the notes

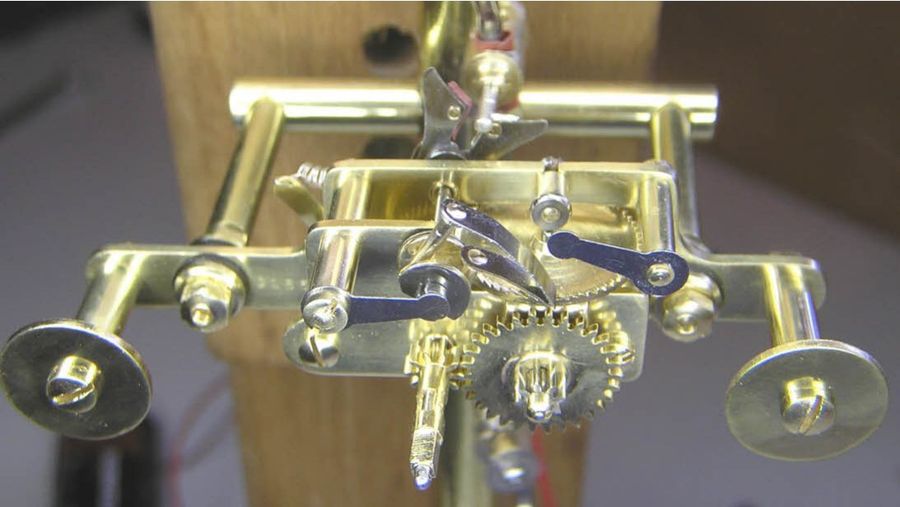

Bulle Nº 19185: photo from page 9 of the restoration notes
From page 9 of the notes

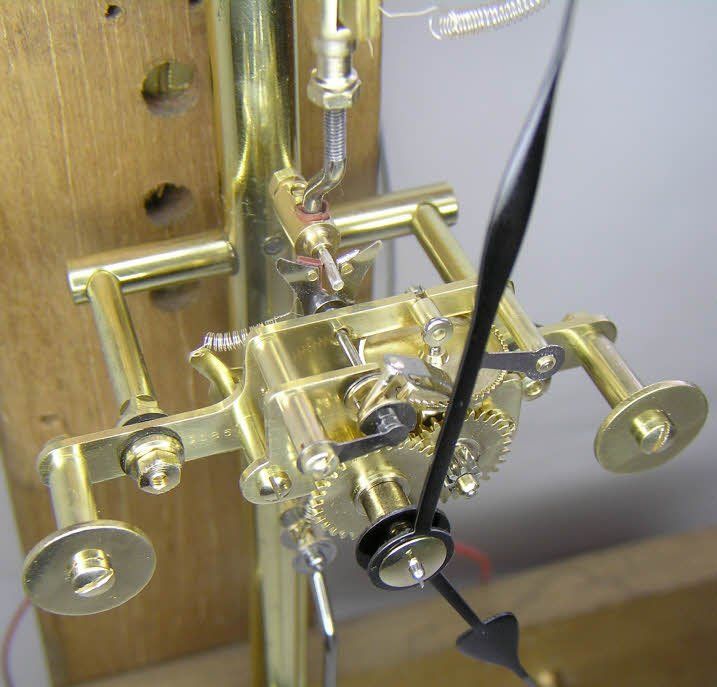

Bulle Nº 19185: photo from page 10 of the restoration notes
From page 10 of the notes

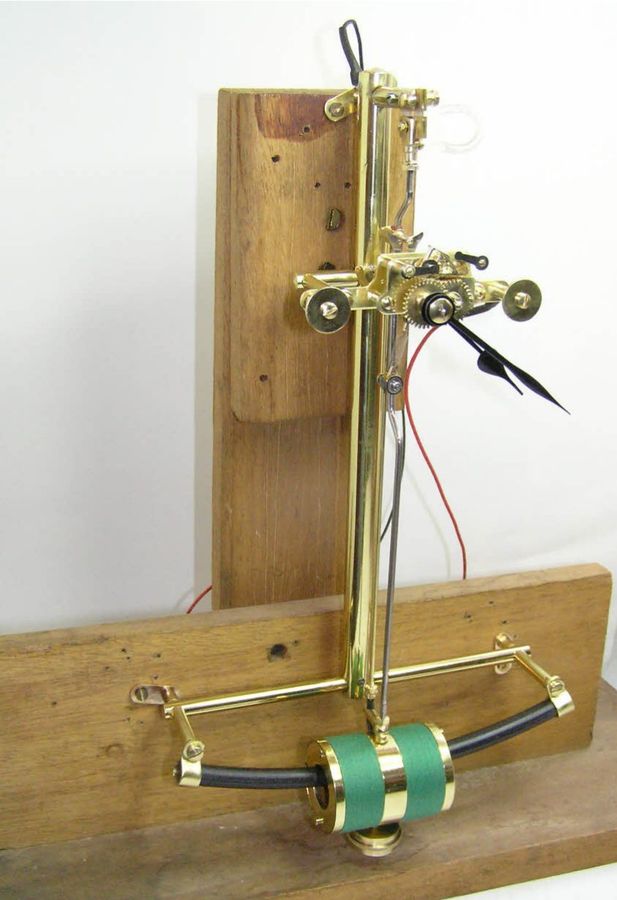

Bulle Nº 19185: photo from page 11 of the restoration notes
From page 11 of the notes

Read the full restoration notes · PDF 1.5 MB
