Bulle Nº 183374

By kind permission of the owner.

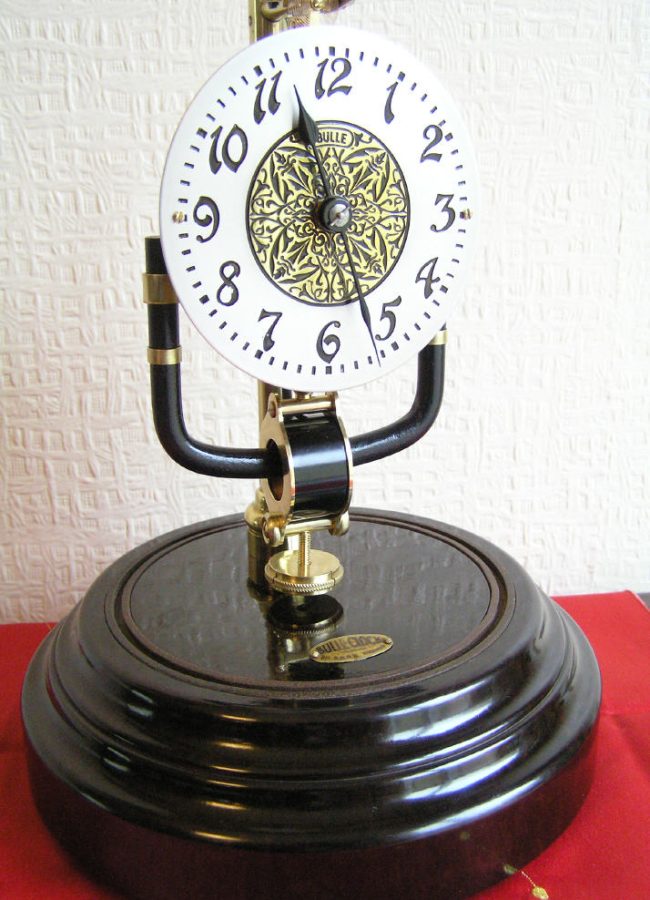

Bulle clock Nº 183374

This clock is in for a full restoration and is of the short type on a Bakelite base.

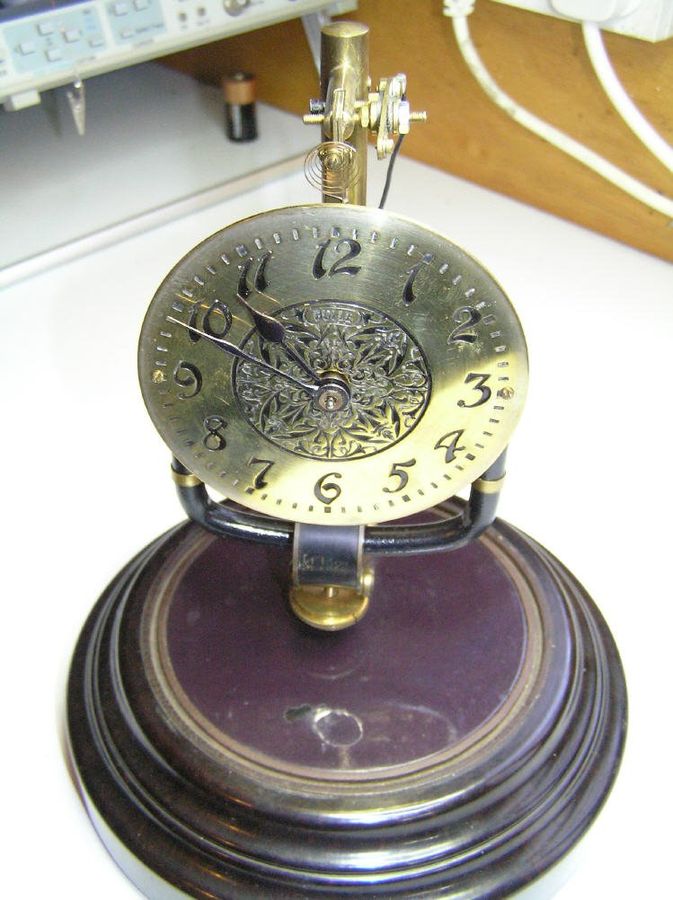

The first thing to note is the filled hole at the front of the Bakelite base. This is the result of someone’s attempt at fitting a screw on the underside. They Chose a thin point in the Bakelite and drilled (see inset photo) all the way through to the top where the material flaked off in a large chunk. They have then stuffed it with filler. Obviously not too successfully. To cover up the mess they have then resprayed the surface with a purple paint. We shall have to see what we can do about it. The first thing will be to strip of the paint layer and see what condition the Bakelite is in underneath. The dial is in good condition but the silvering has worn off the outer chapter ring. This will be re-silvered.

Make
Bulle
Serial number
183374
Case
Under dome, short
Movement
Two plate
Notes
Restoration notes, 2005
Full notes
PDF · 3.0 MB
Read the full restoration notes · PDF 3.0 MB

The complete write-up, with all the photographs, is in the PDF. It can be read on screen, saved or printed.

From the restoration

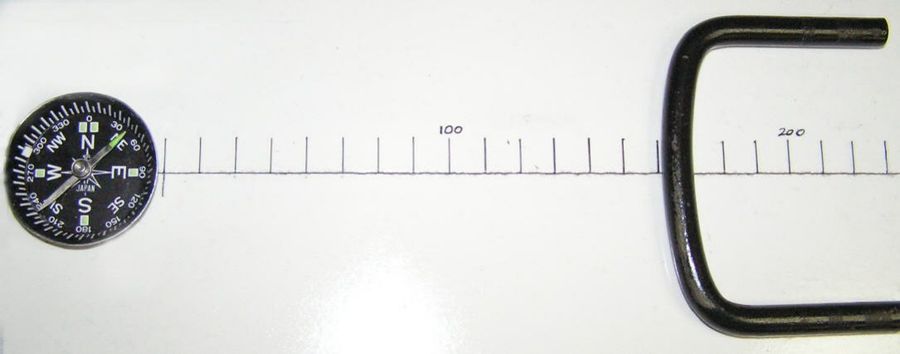

Bulle Nº 183374: photo from page 7 of the restoration notes
From page 7 of the notes

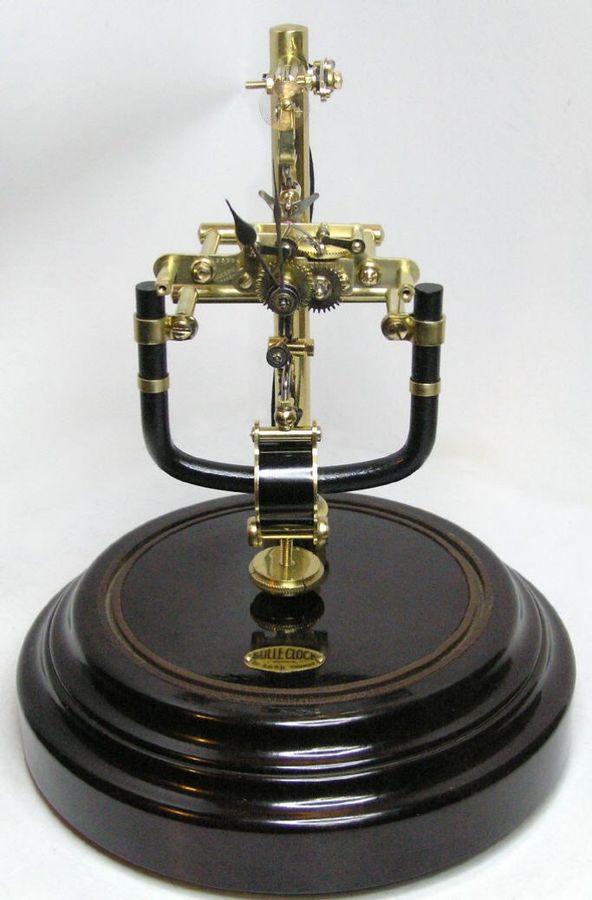

Bulle Nº 183374: photo from page 13 of the restoration notes
From page 13 of the notes

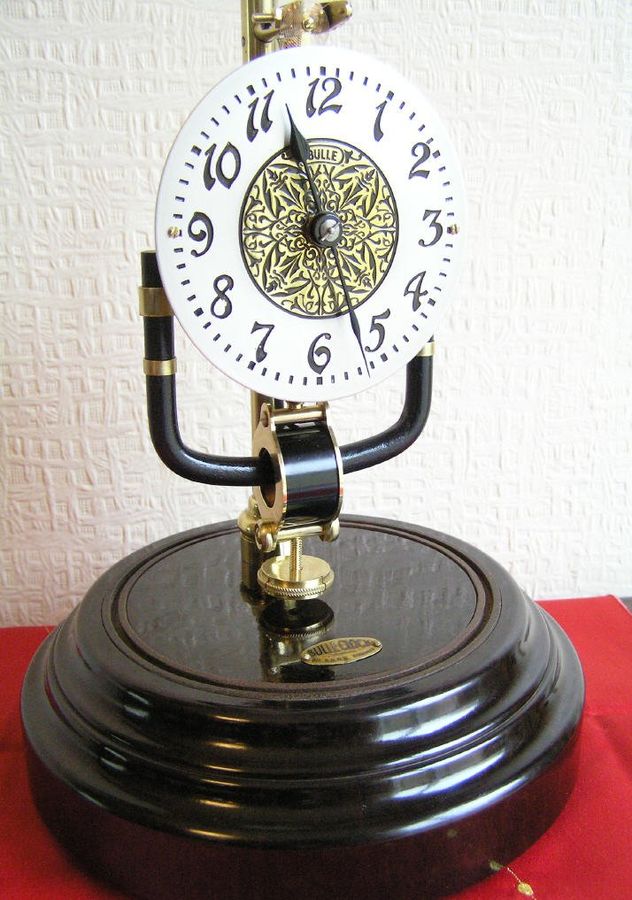

Bulle Nº 183374: photo from page 15 of the restoration notes
From page 15 of the notes
Bulle Nº 183374: photo from page 15 of the restoration notes
From page 15 of the notes

Read the full restoration notes · PDF 3.0 MB
