HorologixBulle & Eureka Parts & Restorations

Restoration

Bulle Nº 12019

By kind permission of the owner.

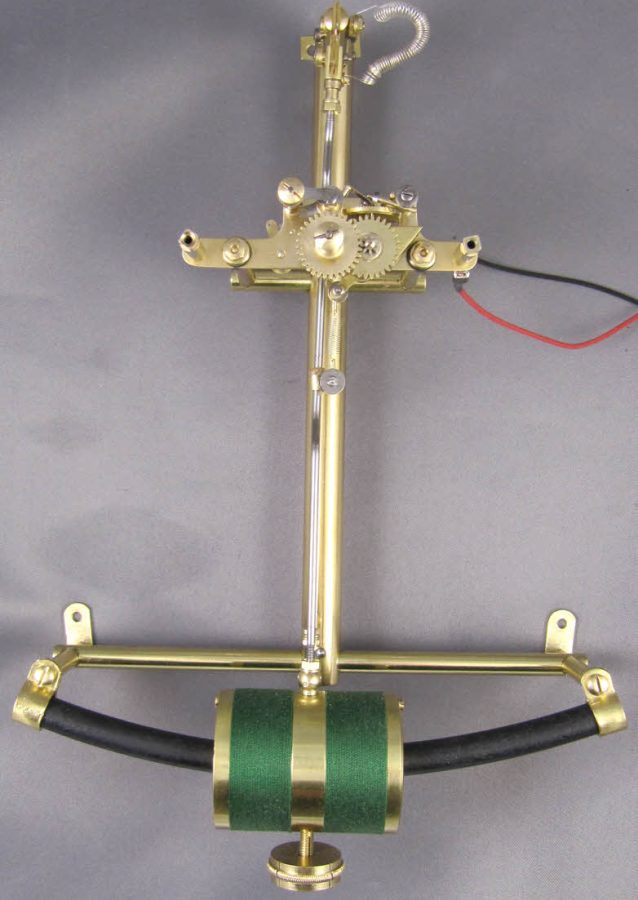

Bulle clock Nº 12019

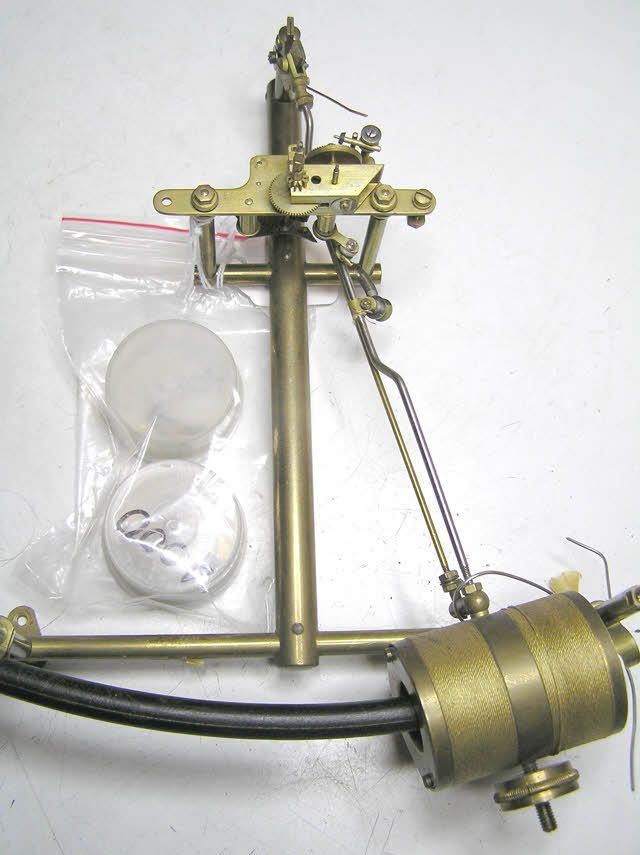

This clock is an early model and exhibits all the characteristics of a full f plate box movement. The dial, hands and case were not delivered with the clock. Unfortunately the movement has been partially disassembled and there are two small plastic containers with some of the components inside. I hope all the missing parts are there.

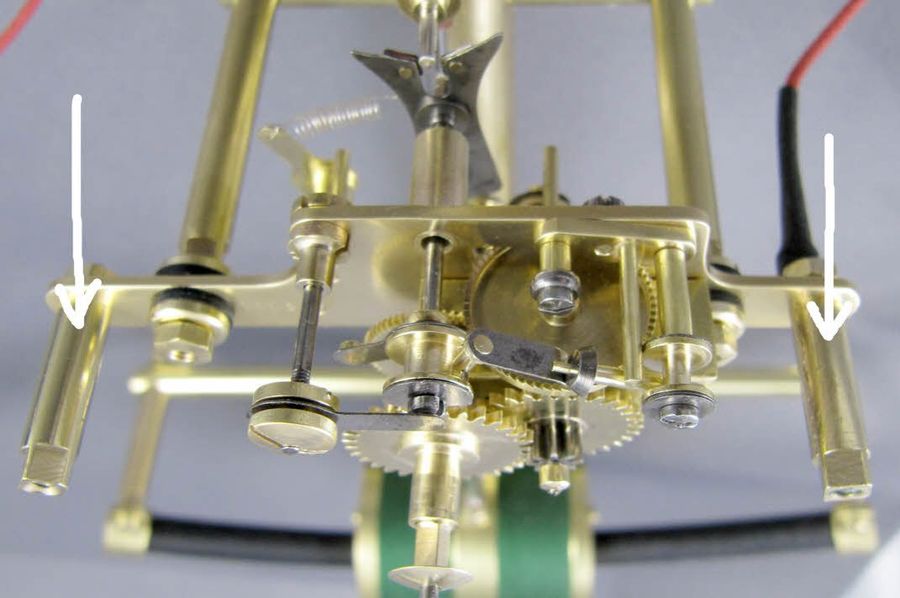

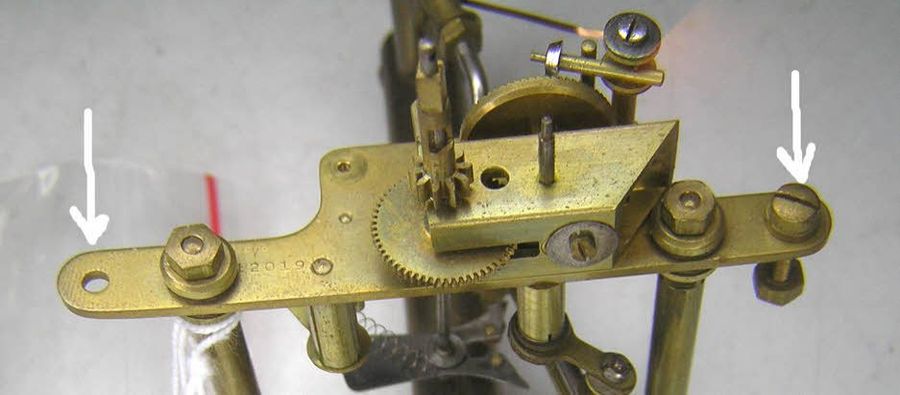

One strange thing to note is the way the magnet is secured to the frame. Note that instead of the familiar pan head screws, this clock has extra pillars. I cannot fathom out where these come from or in which clock they would fit with the movement configured this way. They will be removed and replaced with the normal screws.

Make
Bulle
Serial number
12019
Case
Movement only
Movement
Full plate
Notes
Restoration notes, 2009
Full notes
PDF · 1005 KB
Read the full restoration notes · PDF 1005 KB

The complete write-up, with all the photographs, is in the PDF. It can be read on screen, saved or printed.

From the restoration

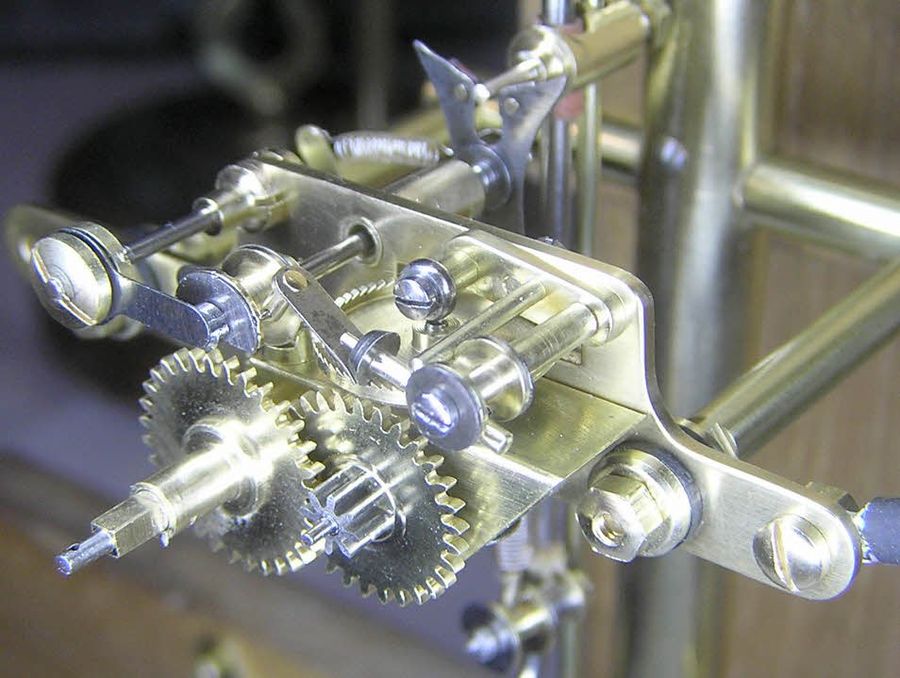

Bulle Nº 12019: photo from page 5 of the restoration notes
From page 5 of the notes
Bulle Nº 12019: photo from page 6 of the restoration notes
From page 6 of the notes

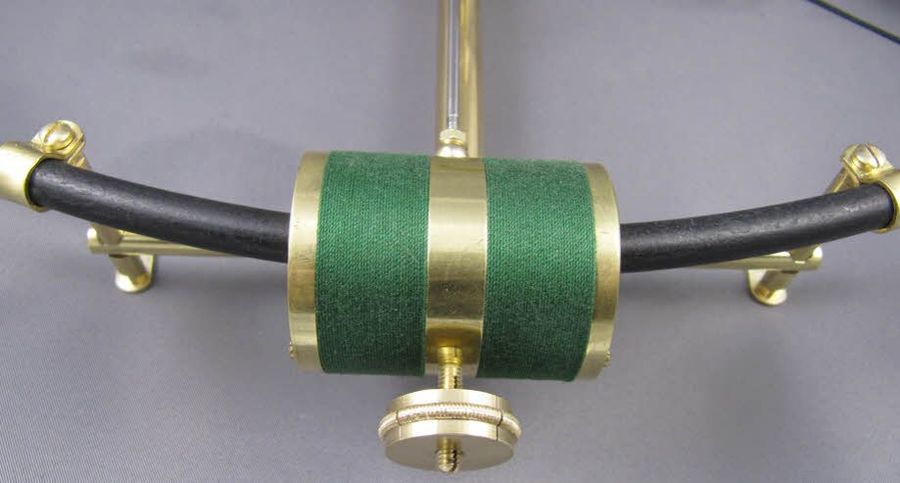

Bulle Nº 12019: photo from page 6 of the restoration notes
From page 6 of the notes

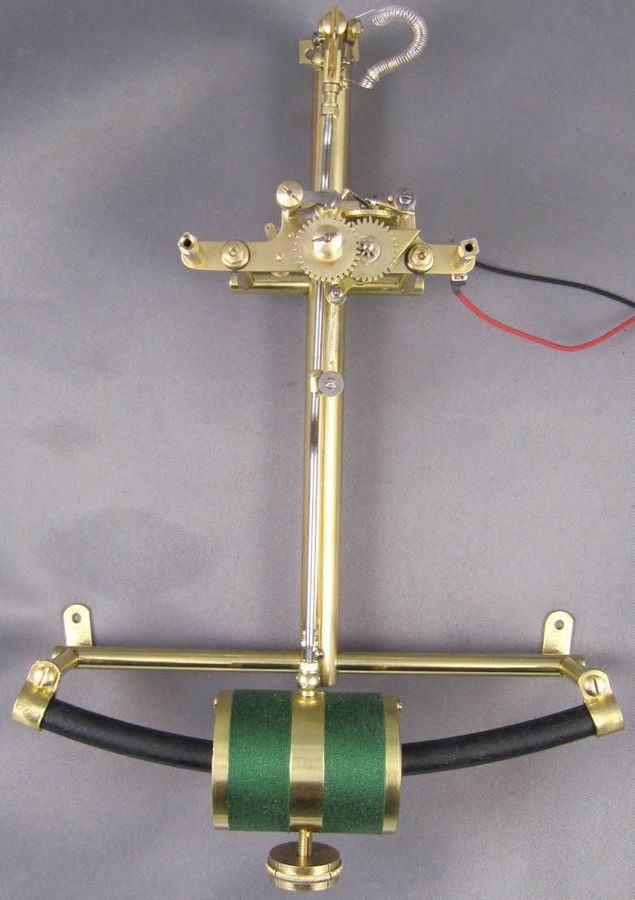

Bulle Nº 12019: photo from page 7 of the restoration notes
From page 7 of the notes

Read the full restoration notes · PDF 1005 KB
